DAYTON

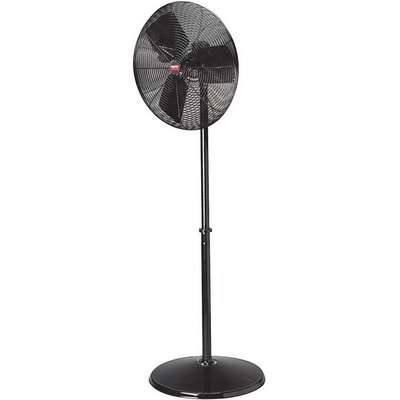

Dayton Light-Duty Industrial Fan: Light-Duty Industrial Fan, 20 in Blade Dia, 2 Speeds, 120 V AC

Hover over image to magnify
Air Circulator,20 In,3700 Cfm,
Air Circulator,20 In,3700 Cfm,

#912737-9 | Pkg Qty: 1

$314.71 pkg | $314.71 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
2,600/3,700 cfm
Motor RPM
1200/1000
Assembled/Unassembled
No
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Pedestal
Blade Diameter
20 in.
NEMA Plug Configuration
5-15P
Blade Material
Aluminum
Number of Blades
3
Brand
DAYTON
Number of Conductors
3
Cord Length
9 ft.
Oscillating
No
Drive Type
Direct
Outside Diameter
23 in.
Duty
Light Duty
Package Quantity
1
Guard Material
Steel
Phase
1
Height Range
Adj 57 - 75 in.
Shaft Diameter
12 mm
Hz
60 Hz
Shipping Weight
75 lb.
Item
Industrial Fan
Sound Level
72 dBA
Mfr. Part Number
2LY96
Standards
cULus Listed
Mobile/Stationary
Stationary
Thermal Protection
Automatic
Motor Enclosure
Open Air Over
Voltage
120V AC
Motor HP
1/6
Watts
240/180
Motor Insulation
Class B
Width
24 in.
General
Air Circulator Height
Adj 57 to 75 in.
Base Dia.
27 in
Air Velocity @ 10 Ft.
800/550 fpm
Environmental Applications
Industrial
Air Velocity @ 20 Ft.
518/436 fpm
Fan Mounting Location
Pedestal
Air Velocity @ 40 Ft.
200/190 fpm
Includes
Column, Mounting Hardware, Pedestal
Air Velocity @ 60 Ft.
150/130 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Wire Guard Finish
Polyester Powder Coated Black
Assembly Required
Yes

Product Description

Light-duty industrial pedestal fans cool light manufacturing areas, warehouses, and other dry, clean spaces. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have lower-horsepower motors with less-robust bearings.

Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
