DAYTON

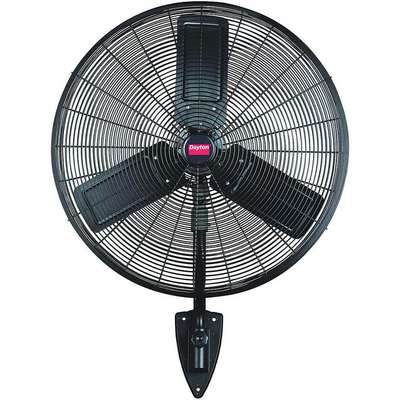

Dayton Wall Mounted Oscillating Fan: Wall Mounted Oscillating Fan, 30 in Blade Dia, 7,260/8,200 cfm

Hover over image to magnify
Air Circulator,30 In,8130 Cfm,
Air Circulator,30 In,8130 Cfm,

#912721-5 | Pkg Qty: 1

$403.47 pkg | $403.47 ea
This item requires special shipping, additional charges may apply.

Unavailable

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
7,260/8,200 cfm
Motor Type
Permanent Split Capacitor
Assembled/Unassembled
No
Mounting Location
Wall
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Blade Diameter
30 in.
Number of Blades
3
Blade Material
Aluminum
Number of Conductors
3
Brand
DAYTON
Oscillating
Yes
Cord Length
10 ft.
Package Quantity
1
Drive Type
Direct
Phase
1
Guard Material
Steel
Shaft Diameter
5/8 in.
Hz
60 Hz
Shipping Weight
83 lb.
Item
Industrial Fan
Sound Level
77 dBA
Mfr. Part Number
6ALF1
Standards
cULus Listed
Mobile/Stationary
Stationary
Thermal Protection
Automatic
Motor Enclosure
Totally Enclosed Air Over
Voltage
115V AC
Motor HP
1/2
Watts
450/369
Motor Insulation
Class B
Width
33 in.
Motor RPM
1100/850
General
Air Circulator Height
43-1/2 in.
Environmental Applications
Industrial
Air Velocity @ 10 Ft.
994/817 fpm
Fan Mounting Location
Wall
Air Velocity @ 20 Ft.
610/525 fpm
Includes
Mounting Hardware, Secondary Safety Support Cable, Wall Bracket
Air Velocity @ 40 Ft.
261/180 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Wire Guard Finish
Polyester Powder Coated Black
Assembly Required
Yes

Product Description

Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
