OMRON

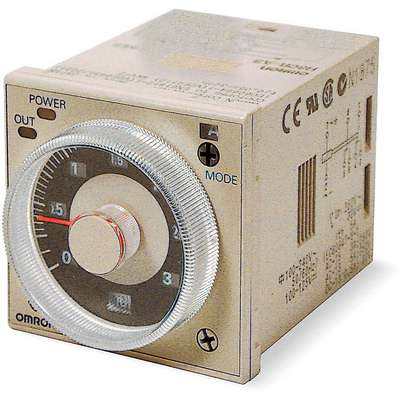

Omron Multi-Function Time Delay Relay, 24 to 48VAC/12 to 48VDC Coil Volts, 5A Contact Amp Rating (Resistiv

Hover over image to magnify
Relay,Time Delay
PI_Asset_1356706
Relay,Time Delay
PI_Asset_1356706
Omron Multi-Function Time Delay Relay, 24 to 48VAC/12 to 48VDC Coil Volts, 5A Contact Amp Rating (Resistiv Video

#912716-1 | Pkg Qty: 1

$132.46 pkg | $132.46 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
5 A @ 240 V
Item
Multi-Function Time Delay Relay
Adjustment Method
Rotary Knob
Maximum Time Setting
300 hr.
Base Type
Octal
Mfr. Part Number
H3CR-A8AC24-48DC12-48
Body Depth
1.89 in.
Minimum Time Setting
0.05 sec.
Body Height
2.65 in.
Mounting
Plug In, Through Panel
Body Width
1.89 in.
Number of Functions
3
Brand
OMRON
Number of Pins
8
Coil Rating
5VA
Number of Poles
2
Coil VA Rating
5
Operating Functions
1, 4, 5, 6
Coil Volts
24 to 48 VAC/12 to 48 VDC
Overall Height
3.21 in.
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Alloy
Pins
8
DC Contact Rating
5 A @ 30 V
Relay Power Consumption
3.0 VA, 3.0 W
Display
Analog panel
Resistive Contact Amp Rating
5A
Electrical Connection
Socket
Shipping Weight
.25 lb.
Function
On Delay, Interval Delay, Cycle 1 Shot
Socket
5X852, 1EGP3, 1EGP5
Hz
50/60
Socket Code
A
Input Power Consumption
3.0 VA, 3.0 W
Status Indicator
None
Input or Control Voltage
24 to 48 VAC, 12 to 48 VDC
General
AC Contact Rating - Relay
5A @ 240V
Max. Time Setting - Timer
12 day 12 hr
Adjustment Method - Timer
Rotary Knob
Min. Time Setting - Timer
0.05 sec
Base Type - Plug In Relay
Octal
Mounting - Relay
Plug In, Through Panel
Body Depth - Relay
1.89 in
Number of Pins - Relay
8
Body Height - Relay
2.65 in
Overall Height - Relay
3.21 in
Body Width - Relay
1.89 in
Power Consumption - Relay
3 VA
Contact Form - Relay
DPDT
Relay
Mechanical Relay
DC Contact Rating - Relay
5A @ 30V
Standards
cULus, CE
Function - Timing Relay
Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot
Timing Relay Functionality
Flicker, Interval Delay, On Delay, One Shot
Hz - Electrical
50 Hz, 60 Hz

Product Description

Multi-Function Time Delay Relay, Function - Timing Relay Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot, Coil Volts 24 to 48V AC/12 to 48V DC, AC Contact Rating - Relay 5A @ 240V, DC Contact Rating - Relay 5A @ 30V, Base Type - Plug In Relay Octal, Number of Pins - Relay 8, Mounting - Relay Plug In, Through Panel, Contact Form - Relay DPDT, Power Consumption - Relay 3.0 VA, 3.0 W, Adjustment Method - Timer Rotary Knob, Min. Time Setting - Timer 0.05 sec
