LITTLE GIANT

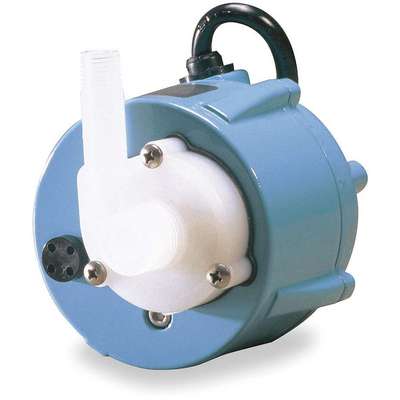

1/150 HP Compact Submersible Pump, 115V Voltage, Continuous Duty, 6 ft. Cord Length
Hover over image to magnify
#912680-6 | Pkg Qty: 1
$160.10 pkg | $160.10 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL
Item
Compact Submersible Pump
Brand
LITTLE GIANT
Length
4-1/2 in.
Cord Length
6 ft.
Maximum GPM for Water
3.4
Duty
Continuous
Maximum Head
7.4 ft.
Full Load Amps
1.1
Mfr. Part Number
501203
GPH of Water @ 1 Ft. of Head
205
Outlet
1/4 in. (M)NPT
GPH of Water @ 3 Ft. of Head
168
Outlet Size
1/4 in.
GPH of Water @ 5 Ft. of Head
120
Package Quantity
1
GPM @ 1 Ft. of Head
3
Pump Material
Aluminum
GPM of Water @ 5 Ft. of Head
2
Pump Type
Compact Submersible Centrifugal
Height
4-5/8 in.
Seal Material
Nitrile
Horsepower
1/150
Shipping Weight
3.2 lb.
Housing Material
Nylon
Type
Compact Submersible Centrifugal
Impeller Material
Nylon
Use With
Nonflammable Liquids Compatible with Pump Component Materials
Inlet
1/2 in. (M)NPT
Voltage
115 V
Inlet Fitting Size
1/2 in. MNPT
Volute Material
Nylon
Inlet Type
1/2 in. (M)NPT
Width
4-1/2 in.
General
Application
Water
Liquid Temperature Range
30 to 120 deg. F
Compatible Discharge Pipe Size
1/4 in
Maximum Feet of Head
7.4 ft
Compatible Intake Pipe Size
1/2 in
Motor Housing Material
Epoxy Coated Cast Aluminum
Compatible with Media Type
Oil
Motor Sealing
Oil-Filled
Discharge Type
NPT
Mounting Location
In-Line, Submersible
Features
In-line or Submersible
Nameplate Voltage
115V AC
Flow Rate @ 1 ft of Head (Maximum)
205 gph
Overload Protection
Yes
Flow Rate @ 5 ft of Head (Maximum)
120 gph
Pump Housing Material
Plastic
For Use With
Water
Pumping Application
Condensate Removal and Mache Coolant Recirculation, Displays, Evaporative Coolers, Fountains, Vaporizers
Intake Type
NPT
Standards
UL
Intake and Discharge Size
1/2 in , 1/4 in
Product Description
This versatile, compact submersible pump from LITTLE GIANT is ideal for use in fountains, statues, water gardens, coolant systems, evaporative coolers, wet saws, and air conditioners. Model has a tough, epoxy-coated, cast-aluminum motor housing for added protection and an oil-filled motor for extra cooling and durability.
