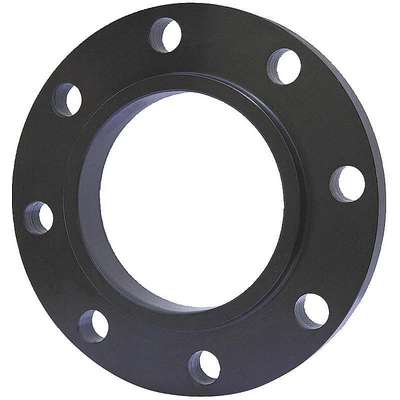

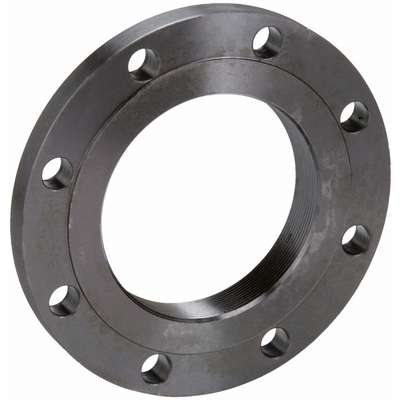

Pipe Flange: Steel, Threaded Flange, 4 in Pipe Size, Raised Face Threaded Flange
Hover over image to magnify
#912675 | Pkg Qty: 1
$140.58 pkg | $140.58 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Fitting Material
Metal
Item
Threaded Flange
Basic Fitting Shape
Flange
Material of Construction
Black Steel
Body Material
Black Steel
Maximum Pressure
150 psi@450°F
Bolt Circle Diameter
3/4 in.
Mfr. Part Number
FLCS1RFTHD400
Bolt Hole Diameter
5/8 in.
Package Quantity
1
Brand
APPROVED SUPPLIER
Pipe Fitting Material
Steel
Class
Class 150
Pipe Size
4 in.
Connection
NPT
Saturated Steam Pressure
150 PSI
Connection Type
NPT
Shipping Weight
12.68 lb.
Flange Outside Diameter
9 in.
Type
Class 150, Threaded
Flange Thickness
7/8 in.
General
Application
Air, Natural Gas, Non-Potable Water, Potable Water, Propane, Steam
Nominal Pipe Size
4 in
Connection Surface
Raised Face
Number of Bolt Holes
8
Finish/Coating
Anodized
Pressure Level
Medium Pressure (300-999 psi)
Flange Fitting Threading
8
Standards
ASTM A-197, ASTM A47, ASME B16.3 and B16.4, FM Approved
Flange Type
Threaded Flange
Surface Shape
Raised Face Threaded Flange
For Pipe Schedule
40
Temp. Range
-29 Degrees to 425 Degrees F
Low Lead Compliance Level
No Lead Content
Product Description
This Imperial Supplies APPROVED threaded flange allows you to bolt 2 flanges together with a gasket to form a tight seal that still eases access to the piping system. Flange is for use with air, water, oil, natural gas, or steam.
- Use with standard wall (Schedule 40) pipes and nipples
- No welding is required
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Threaded Flange,Pipe Size 4 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4TXF9 | Threaded Flange,Pipe |
 | UNSPSC CODES | 40174702 | |
 | VMRS (ATA) CODES | 053-008-004 | Threaded Flange,Pipe |
