HUBBELL WIRING DEVICE-KELLEMS

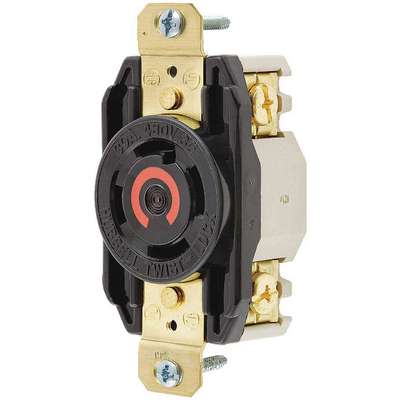

Hubbell Wiring Device-Kellems Black Locking Receptacle, 30 Amps, 480VAC Voltage, NEMA Configuration: L16-30R
Hover over image to magnify
#912635-2 | Pkg Qty: 1
$91.48 pkg | $91.48 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AFCI
No
Maximum Wire Size
8 AWG
Accessory Group
B
Mfr. Part Number
HBL2730
Amperage
30 A
Minimum Operating Temperature
-40 °C
Amps
30 A
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mounting Type
Flush Mount
Color Family
Black
NEMA Configuration - Plugs & Connectors
L16-30
Connection Orientation
Straight
NEMA Rating
1
Contact Material
Brass
NEMA Receptacle Configuration
L16-30R
Cover Type
No Cover
Number of Gangs
1
Current Rating
30 A
Number of Poles
3
Flange Width
Not Applicable
Number of Wires
4
For Environment
Dry
Package Quantity
1
Grade
Industrial
Phase
Three
Grounding
Grounded
Plate Code
B
HP
10 HP
Polarized
Yes
Horsepower
10 hp
Shipping Weight
.25 lb.
Housing Color
Black
Shrouded
No
Housing Material
Nylon
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
Sub-Category
Single Receptacles
Includes
Mounting Hardware
UL 94 Flammability Rating
V-2
Item
Locking Receptacle
Voltage
480V AC
Material
Nylon
Voltage Rating
480V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
85 °C
Wiring Style
Standard
General
Flange Type
Non-Flanged
Special Features
Corrosion Resistant
HP
10.0
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Receptacle,Single,30 A,L16-30
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6A658 | Receptacle, Single,30 A, |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 053-007-002 | Receptacle, Single,30 A, |
