REELCRAFT

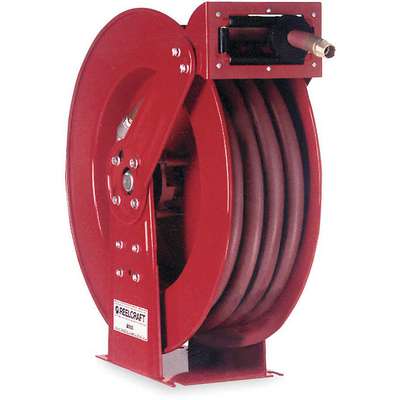

Spring Return Hose Reel: 75 ft (1/2 in I.D.), 1/2 in MNPT, 3,000 psi Max Op Pressure, Red
Hover over image to magnify
#912616-8 | Pkg Qty: 1
$1,108.58 pkg | $1,108.58 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Permanently Lubricated
Latch
Locking
Brand
REELCRAFT
Maximum Pressure
3000 psi
Drive Type
Spring Return
Maximum Temperature
210 deg. F
Enclosed
No
Mfr. Part Number
82075 OMP
Enclosed Reel
No
Mounting Location Type
Bench, Ceiling, Floor, Truck, Wall
Finish
Powder Coated
Number of Guide Arms
Single Arm
Hose Capacity
75 ft. (1/2 in I.D.)
Overall Height
25-3/8 in.
Hose Ends
1/2 in. (M)NPT
Overall Length
24 in.
Hose Included
Yes
Overall Width
10-1/2 in.
Hose Inside Diameter
1/2 in.
Package Quantity
1
Hose Length
75 ft.
Pedestal Type
Dual Pedestal
Hose Reel Group
Spring Return Hose Reels
Reel Inlet
1/2 in. (F)NPT
Hose Reel Media
Oil
Reel Material
Carbon Steel
Hose Reel Rating
Heavy Duty
Seal Type
Nitrile
Housing Material
Steel
Shipping Weight
100 lb.
Includes Hose
Yes
Speed Limited Retraction
No
Item
Spring Return Hose Reel
Type
Heavy Duty Industrial, Oil
General
Base Motion Type
Stationary
Includes
Hose; Bumper
Bearing Construction
Ball
Includes Hose Stop
Yes
Corrosion-Resistant
Yes
Media - Hose Reels
Oil
Drive Type - Hose Reels
Spring Return
Mount Base Height
12 in
Finish - Hose Reels
Powder Coated
Mount Base Width
7 11/32 in
Fitting Gender
Male x Male
Mount Hole Diameter
1/2 in
Hose Cover Material
Synthetic Rubber
Mounting Hole Center to Center Height
10 in
Hose End Configuration
1/2 in MNPT
Mounting Hole Center to Center Width
6 in
Hose Fitting A Material
Steel
Number of Mount Holes
4
Hose Fitting A Type
NPT
Reel Finish
Powder Coated
Hose Fitting B Material
Steel
Swivel Inlet Gender
Female
Hose Fitting B Type
NPT
Swivel Inlet Size
1/2 in
Hose Inside Dia.
1/2 in
Swivel Inlet Thread Size
1/2 in - 14
Hose Outlet
1/2 in (M)NPT
Swivel Inlet Type
NPT
Hose Outside Dia.
7/8 in
Swivel Material
Nickel Plated Steel
Hose Reel Primary Application
Oil
Swivel Outlet Gender
Male
Hose Reel Product Group
Spring Return Hose Reel
Swivel Outlet Size
1/2 in
Hose Reel Type
Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Swivel Outlet Thread Size
1/2 in - 14
Hose Tube Material
Synthetic Rubber
Swivel Outlet Type
NPT
Product Description
Dual-arm oil spring-return hose reels are powder-coated to withstand corrosive environments. These all-steel, dual-pedestal base reels (500–3000 psi) mount to the wall, ceiling, or on trucks, and include a field-adjustable guide arm. Dual-arm oil spring-return hose reels are used with hoses in auto or fleet service centers, dealerships, and for farm maintenance.
Expertly Selected Product Pairings
Item Barcode
Hose Reel,Oil,1/2 In D
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4NA89 | Hose Reel, Oil,1/2 In D |
 | UNSPSC CODES | 40142022 | |
 | VMRS (ATA) CODES | 053-006-009 | Hose Reel, Oil,1/2 In D |
