WESTWARD

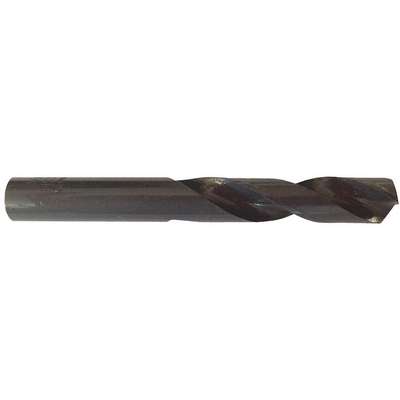

Westward Screw Machine Drill Bit: 1/2 in Drill Bit Size, 2 1/4 in Flute Lg, 3 3/4 in Overall Lg
Hover over image to magnify
#912557-1 | Pkg Qty: 1
$11.50 pkg | $11.50 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WESTWARD
Grade
Heavy Duty
Cutting Direction
Right
Item
Screw Machine Drill Bit
Cutting Direction
Right Hand
Maximum Drilling Depth
2-1/4 in.
Decimal Equivalent
1/2
Mfr. Part Number
6CXL8
Depth x Diameter Ratio
3xD
Number of Flutes
2
Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
3-3/4 in.
Drill Bit Finish
Black Oxide
Pack Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
135 deg.
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
1/2 in.
Shank Type
Straight
Finish
Black Oxide
Shipping Weight
1.01 lb.
Flute Length
2-1/4 in.
Sizes Included
1/2 in.
Flute Type
Spiral
General
Application
Tool Steels, Carbon Steel, Plastic, Cast Iron
Material - Machining
High Speed Steel
Drill Bit Grouping
Individual
Material Grade - Machining
High Performance
Drill Bit Point Type
Split Point
Measurement System
Fractional Inch
Drill Length Class
Screw Machine Length
Shank Type - Machining
Straight
Finish - Machining
Black Oxide
Product Description
These drill bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Documents
Item Barcode
Screw Mach Drill,Hss,Blk Oxide,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6CXL8 | Screw Mach Drill,HSS, |
 | UNSPSC CODES | 20111614 | |
 | VMRS (ATA) CODES | 053-007-005 | Screw Mach Drill,HSS, |
