QA1

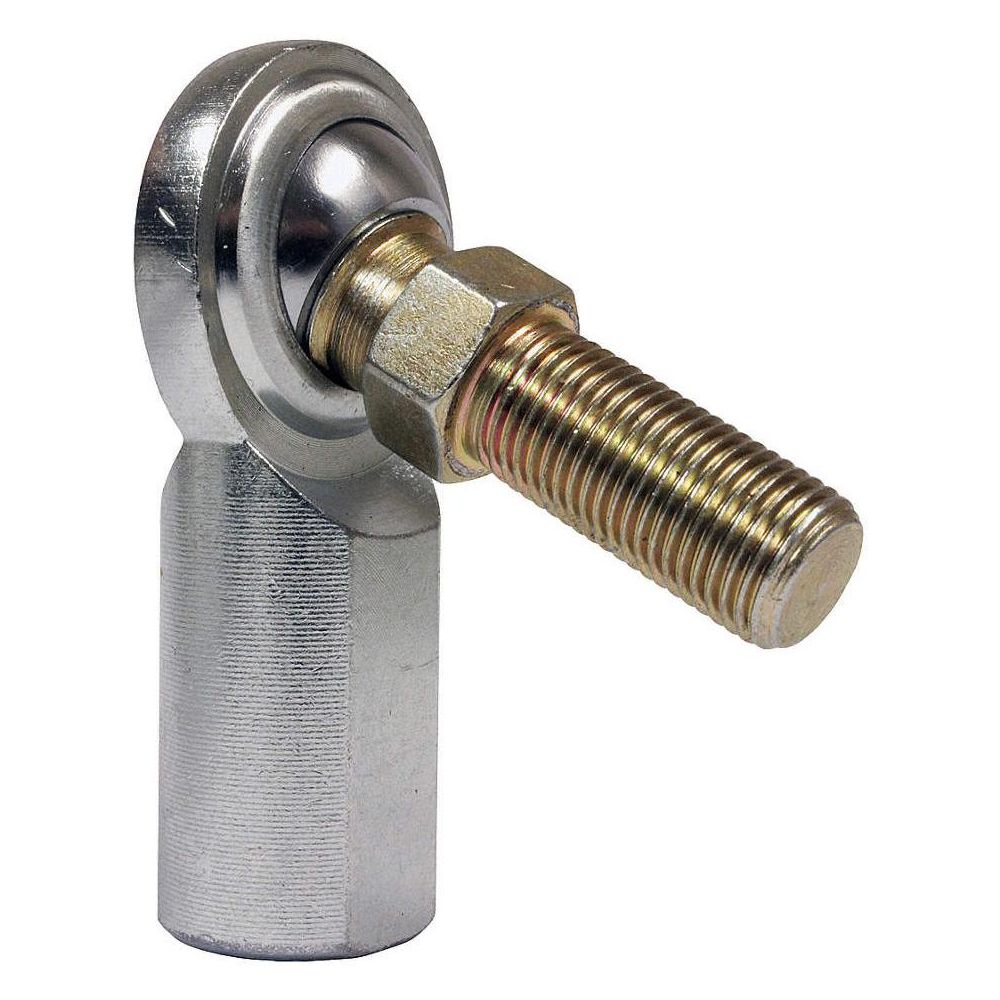

Rod End: Female Studded, 52100 Steel Spherical, Left Hand, #10-32 Thread Size, 0.5" Stud Lg

Hover over image to magnify

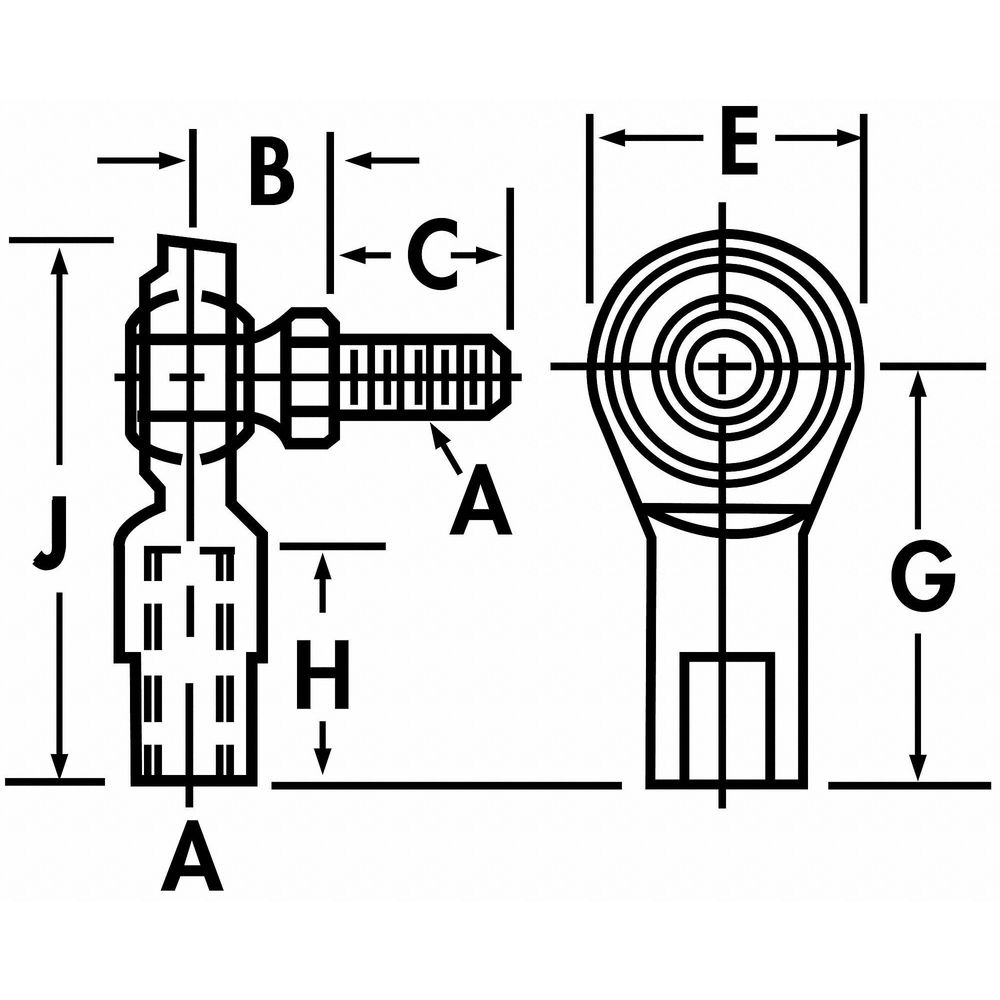

Female Stud Rod End,Lh,#10-32
PI_Asset_1766079
Female Stud Rod End,Lh,#10-32
PI_Asset_1766079
Double tap image to magnify
Female Stud Rod End,Lh,#10-32
6G178_AL01
Female Stud Rod End,Lh,#10-32
6G178_AL01

#912526-1Pkg Qty: 1

$11.09 pkg | $11.09 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Bearings
52100 Steel Spherical Ball
Mfr. Part Number
CFL3S
Brand
QA1
Package Quantity
1
Construction
Follows SAE Specification J1120
Shipping Weight
.05 lb.
Housing
Carbon Steel
Thread
Left Hand
Item
Rod End
Thread Size
#10-32
General
Ball
52100 Steel Spherical
Static Radial Load
2,079 lb
Max. Angular Misalignment
20 Degrees

Product Description

This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.

Documents

Carbon Steel Rod End Spec Sheet
