HUCK MAGNA-LOK

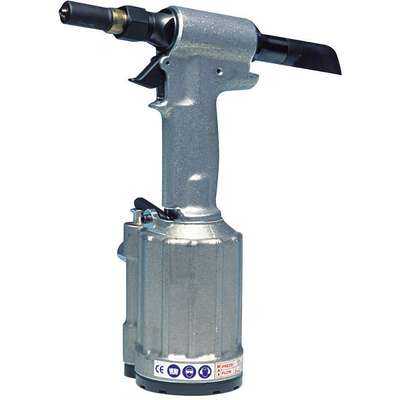

Huck Magna-Lok General Duty Air Riveter; 1/4" Blind Rivet Dia.

Hover over image to magnify
Air Riveter,General,3889 Lb.
Air Riveter,General,3889 Lb.

#912496-3 | Pkg Qty: 1

$2,258.02 pkg | $2,258.02 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Inlet
1/4 in.
Mfr. Part Number
202
Air Consumption
scfm
Minimum Hose Size
1/4 in.
Blind Rivet Diameter
1/4 in.
Package Quantity
1
Brand
HUCK MAGNA-LOK
Pulling Force
3889 lb.
CFM per Stroke
0.2
Rivet Diameter
1/4 in.
Construction
Aluminum
Rivet Nut Diameter
1/4 in.
Duty
General
Shipping Weight
7.24 lb.
Item
Air Riveter
Stroke Length
3/4 in.
Length
8-3/5 in.
Tool Weight
5.1 lb.
Maximum Pressure
110 psi
General
Air Pressure
110 psi
Max. Air Pressure
110 psi
Blind Rivet Dia. - Aluminum
1/4 in

Product Description

Air-powered blind rivet installation tools compress blind rivets to join two pieces of metal. Rivets are placed into a pre-drilled hole, and the tool compresses the end and breaks the rivet mandrel to leave a clean surface. The rivet mandrel is then ejected from the tool. Blind rivets (sometimes called pop rivets) can be installed when there is access to only one side of the workpiece.
