BLACKBURN

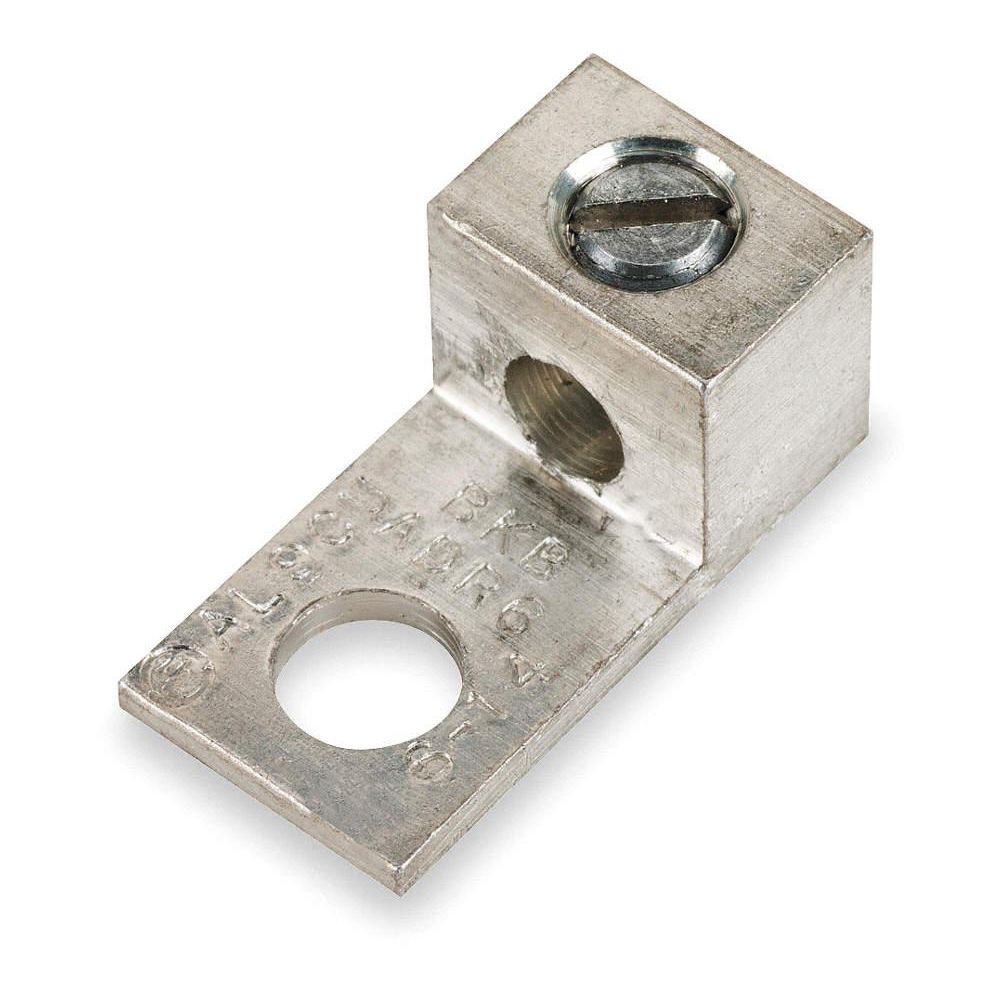

Blackburn Mechanical Connector, Aluminum, Max. Conductor Size: 1/0 AWG Stranded
Hover over image to magnify
#912446-5 | Pkg Qty: 1
$2.67 pkg | $2.67 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum
Mount
1 Hole
Brand
BLACKBURN
Number of Conductors
1
Connector Type
Dual Rated Lug
Number of Holes
1
Head Style
Slotted
Pack Quantity
1
Item
Mechanical Connector
Shipping Weight
.02 lb.
Length
1.47 in.
Stud Size
1/4 in.
Material
Aluminum
Stud/Tab Size
1/4 in.
Maximum Conductor Size
1/0 AWG Stranded
Type
Single-Conductor
Mfr. Part Number
ADR11
Width
0.63 in.
Minimum Conductor Size
14 AWG Solid
General
Connection Orientation
Dual Rated Lug
No. of Holes
1
Contact Finish
Tin
Number of Terminations
1
For Conductor Material
Aluminum, Copper
Standards
UL 486B Tested, AL9CU Rated
For Stranded Copper Wire Size - Maximum
1/0 AWG
Tongue Length
0.44 in
For Stranded Copper Wire Size - Minimum
14 AWG
Tongue Thickness
0.19 in
For Stud Size
1/4 in
Tongue Width
0.63 in
For Wire Size
1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 1 AWG, 2 AWG, 4 AWG, 8 AWG
UL Standard
UL 486A-486B
No. of Conductors
1
Wire Size Ranges
14 AWG – 1/0 AWG
Product Description
This conductor is designed to offer easy installation, without requiring additional tools. It features tin-plated, aluminum construction.
Expertly Selected Product Pairings
Item Barcode
Connector,1 Conductor
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3LN32 | Connector,1 Conductor |
 | UNSPSC CODES | 39121408 | |
 | VMRS (ATA) CODES | 053-007-002 | Connector,1 Conductor |
