DAYTON

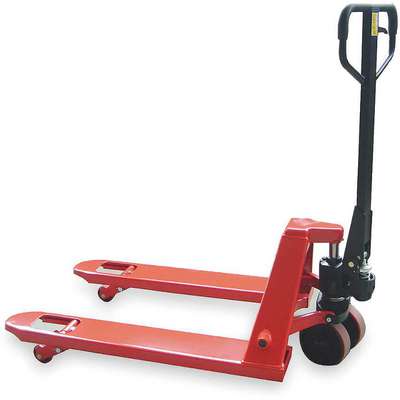

Dayton Standard General Purpose Manual Pallet Jack, 5500 lb. Load Capacity, Fork Size: 6-5/16"W x 36"L, Red
Hover over image to magnify
#912436-4 | Pkg Qty: 1
$678.71 pkg | $678.71 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Load Center
18 in.
Brand
DAYTON
Material
Steel
Color Family
Red
Mfr. Part Number
2TUR7
Construction
Steel
Operation
Manual
Finish
Powder Coated
Overall Height
48 in.
Fittings
Grease
Overall Length
50 in.
Fork Height Lowered
2-15/16 in.
Overall Width
27 in.
Fork Height Raised
7-3/4 in.
Package Quantity
1
Fork Length
36 in.
Roller Diameter
2-7/8 in.
Fork Width
6-5/16 in.
Shipping Weight
190 lb.
Handle
Cushion Grip
Steering Arc
210 deg.
Item
Pallet Jack
Style
Standard
Key Pallet Jack Feature
General Purpose
Wheel Material
Polyurethane
Lifting Height Maximum
7-1/2 in.
Width Across Forks
27 in.
Lifting Height Minimum
2-7/8 in.
Width Between Forks
14-3/8 in.
Load Capacity
5500 lb.
General
Assembled
Yes
Load Wheel/Tread Material
Polyurethane
For Pallet Type
Open/Closed
Main Wheel Size
7 in
For Surface Type
Concrete
Overall LxWxH
50 in x 27 in x 48 in
Fork LxW
36 in x 6 5/16 in
Pallet Jack Operation
Manual
Fork Style
Standard
Pallet Jack Style
Standard
Fork Type
Fixed
Roller Dia.
2 7/8 in
Grease Fittings
(16) Internal
Rollers
Polyurethane
Lifting Height Max.
7-1/2"
Steer Wheel Diameter
7 in
Lifting Height Min.
2-7/8"
Steer Wheel/Tread Material
Polyurethane
Load Wheel Bearing Type
Ball Bearing
Strokes to Maximum Lift Height
16
Load Wheel Diameter
2 7/8 in
Wheel Base
37 in
Product Description
Dayton hand hydraulic pallet trucks are manually operated industrial duty products designed to lift a maximum weight. Safety features include an overload bypass valve and a pressure compensated flow valve for controlled lowering. A hand-actuated control lever for selecting “raise,” “neutral,” and “lower” positions is standard.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Pallet Truck,Fork L 36 In,L
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2TUR7 | Pallet Truck, Fork L 36 In, |
 | UNSPSC CODES | 24101505 | |
 | VMRS (ATA) CODES | 053-006-009 | Pallet Truck, Fork L 36 In, |
