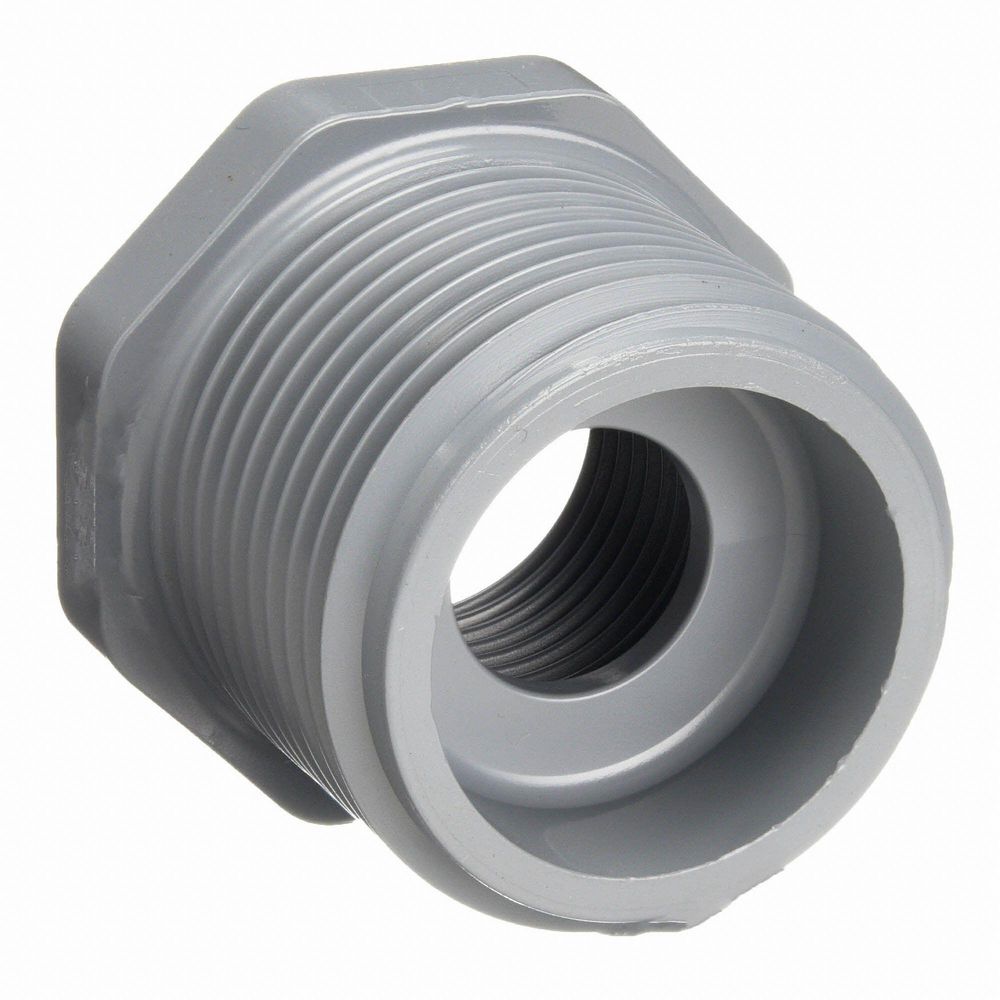

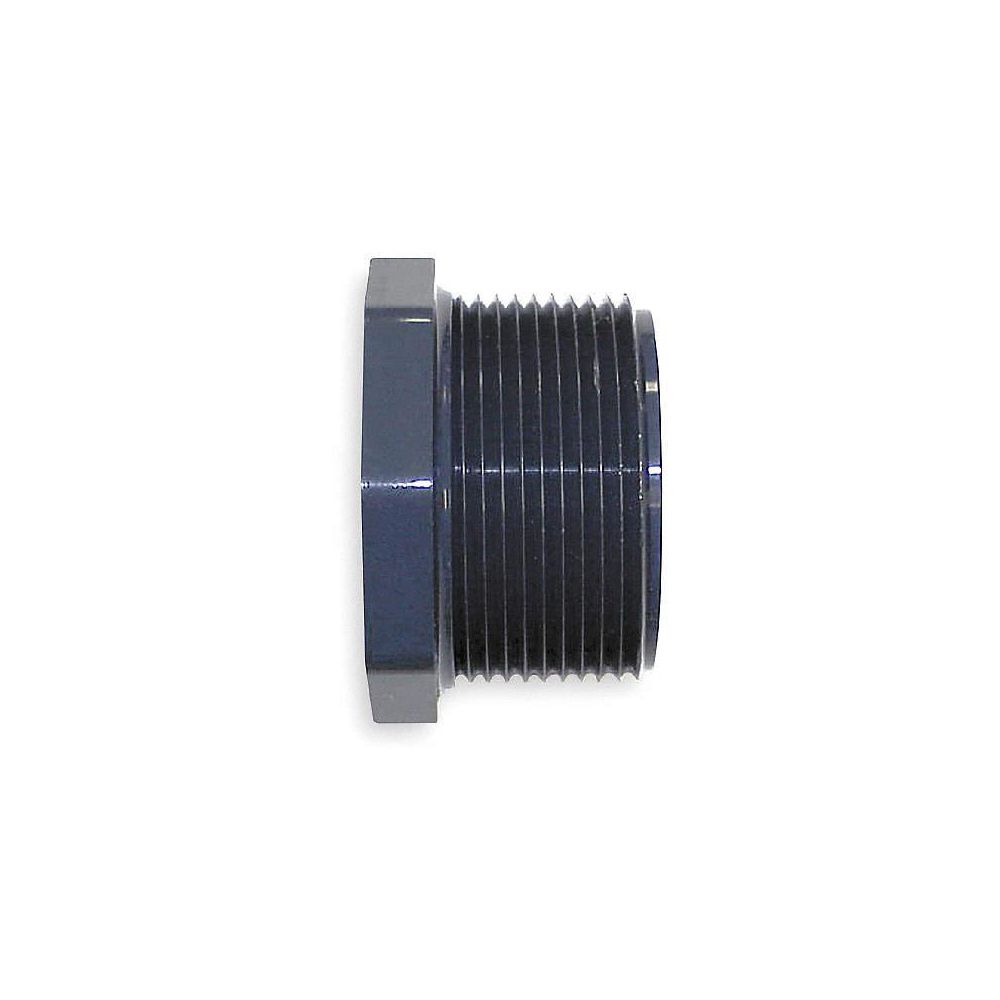

Schedule 80 CPVC Reducer Bushing, 1-1/4" x 1" Pipe Size, MNPT x FNPT Fitting Connection Type

Name: Schedule 80 CPVC Reducer Bushing, 1-1/4" x 1" Pipe Size, MNPT x FNPT Fitting Connection Type
Brand: GF PIPING SYSTEMS
SKU: 9123717
Price: 15.7 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#912371-7Pkg Qty: 1

$15.70 pkg | $15.70 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Mar 25.

Technical Specifications

Key Specifications

Basic Fitting Material

Plastic

Maximum Pressure

260 psi @ 73°F

Basic Fitting Shape

Bushing

Maximum Temperature (Deg. F)

210°F

Body Material

CPVC

Mfr. Part Number

9839-168

Brand

GF PIPING SYSTEMS

Package Quantity

Class

Schedule 80

Pipe Fitting Material

CPVC

Color Family

Gray

Pipe Size

1-1/4 in. x 1 in.

Connection Type

MNPT x FNPT

Shipping Weight

.2 lb.

Item

Reducer Bushing

General

Fitting Pipe Size

1 1/4 in x 1 in

Fitting Side B Pipe Threading

11.5

Fitting Side A Gender

Male

Fitting Side B Type

NPT

Fitting Side A Nominal Pipe Size

1 1/4 in

For Pipe Outside Diameter

1 1/4 in

Fitting Side A Outside Diameter

1 9/16 in

For Pipe Schedule

Fitting Side A Pipe Threading

11.5

Low Lead Certified Standard

NSF 61

Fitting Side A Type

NPT

Low Lead Compliance Level

Certified

Fitting Side B Gender

Female

Standards

ASTM D1784, NSF14 Certified

Fitting Side B Nominal Pipe Size

1 in

Temp. Range

32 Degrees to 200 Degrees F

Fitting Side B Outside Diameter

1 7/8 in

Product Description

This tough, lightweight, and corrosion-resistant GF PIPING SYSTEMS reducer bushing is highly resistant to acids, alkalis, alcohols, and many other corrosive materials. Fitting is much lighter (about 1/6th as much as steel) to help speed and simplify handling during installation, plus it won’t corrode, pit, rust, scale, nor is it subject to electrolysis. Material is not affected by soil conditions if fitting is buried. For outdoor applications that are exposed to sunlight, 2 coats of white-colored, water-base latex paint provide additional protection.
