POWER FIRST

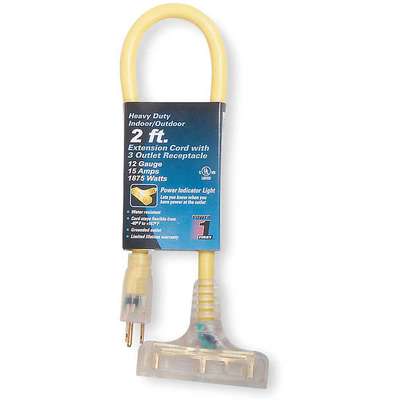

Power First 2 ft. Indoor, Outdoor Lighted Extension Cord; Max Amps: 15.0, Number of Outlets: 3, Yellow

Hover over image to magnify
Cord,Extension,2 Ft
PI_Asset_969090
Cord,Extension,2 Ft
PI_Asset_969090

#912296-4 | Pkg Qty: 1

$18.56 pkg | $18.56 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
POWER FIRST
NEMA Plug Configuration
5-15P
Cord Ending Type
T-Shape
NEMA Receptacle Configuration
5-15R
Cord Length
2 ft.
Nominal Outside Diameter
0.59 in.
Cord Type
STW
Number of Conductors
3
Extension Cord Length
2 ft.
Number of Outlets
3
Extension Cord Outlet NEMA Configuration
5-15
Package Quantity
1
Extension Cord Plug NEMA Configuration
5-15
Plug Configuration
Straight, No Swivel
Extension Cords Group
1 to 10 ft.
Plug Style
Straight
Gauge/Conductor
12/3
Plug Type
Straight, No Swivel
Indoor/Outdoor
Indoor/Outdoor
Power Indicator
Yes
Item
Lighted Extension Cord
Shape
Round
Jacket Color Family
Yellow
Shipping Weight
.8 lb.
Jacket Material
PVC
Standards
UL/CUL
Lighted End
Yes
Temperature Range (Deg. F)
-40 to 167 deg. F
Maximum Amps
15 A
Type
Round
Maximum Wattage
1,875 W
Voltage
125 VAC
Mfr. Part Number
4DB72
Watts
1875 W
NEC Cord Designation
STW
Wire Size
12 AWG
NEMA Connector
(3) 5-15R
General
Cord Shape
Round

Product Description

Outdoor extension cords with multiple outlets consist of flexible electrical cable and are used to supply temporary power to more than one device from the same cord, such as a power tool and a light. They have a plug at one end and a molded outlet with two or more receptacles at the other end that the devices plug into. These cords have a more durable jacket than indoor extension cords to help protect against sunlight, moisture, and abrasion typically found in outdoor applications.

Extension cords are a length of flexible electrical cable used to bring power to a device located up to 100 ft. away. They are typically used when a device's cord is too short to reach a power source, such as an electrical outlet, or where outlets may be scarce. They have a two- or three-prong plug at one end that connects to the power source and a molded outlet at the other end that devices plug into. Extension cords with a single outlet have a single receptacle, while cords with multiple outlets have two or more receptacles. In general, the more power needed by a device, the thicker the extension cord (or lower the gauge) needs to be to support the electrical current flowing through the cord. Extension cords are commonly used to provide temporary power in a wide range of indoor and outdoor applications.
