DAYTON

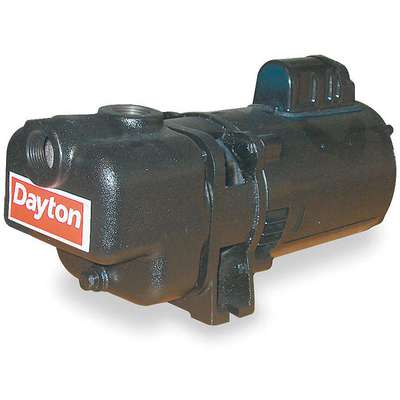

3/4-HP Self Priming Centrifugal Pump, 82 ft. Max. Head, 1/8" Max. Dia. Solids, Cast Iron
Hover over image to magnify
#912293-9 | Pkg Qty: 1
$592.68 pkg | $592.68 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
c UL us
Maximum Head
82 ft.
Amps
11.3/5.6 A
Maximum Liquid Temperature
200°F
Bearing Type
Ball
Maximum Pressure
35.4 psi
Best Efficiency GPM @ Head
45 gpm @ 56 ft.
Maximum Specific Gravity
1
Best Efficiency Range GPM @ Head
30 to 50 gpm @ 62 to 50 ft.
Mfr. Part Number
4UA69
Brand
DAYTON
Mfr. Warranty Length
1 yr.
Drain Plug
Easily Accessible
Minimum GPM @ Head
6 gpm @ 80 ft.
Duty
Continuous
Motor Design
Capacitor-Start
Frame
56J
Motor Enclosure
ODP
GPM of Water @ 10 Ft. of Head
75
Motor RPM
3500
GPM of Water @ 15 Ft. of Head
71
Motor Type
Single Phase
GPM of Water @ 20 Ft. of Head
68
NEMA/IEC Frame
56J
GPM of Water @ 25 Ft. of Head
65
Outlet
1-1/2 in. NPT
GPM of Water @ 30 Ft. of Head
62
Outlet Size
1-1/2 in. NPT
GPM of Water @ 40 Ft. of Head
55
Package Quantity
1
GPM of Water @ 50 Ft. of Head
50
Phase
1
GPM of Water @ 60 Ft. of Head
40
Port Rotation
No
GPM of Water @ 70 Ft. of Head
25
RPM
3450
GPM of Water @ 80 Ft. of Head
5
Screw Material
Zinc Plated
Height
9-1/8 in.
Seal Application
Non-Flammable and Non-Abrasive Liquids Compatible with Seal Component Materials Up to 180° F
Horsepower
3/4
Seal Material
Carbon Ceramic-Buna N
Housing Material
Cast Iron
Seal Type
Mechanical
Hz
60
Self-Priming
Yes
Impeller Material
Cast Iron
Service Factor
1-1/2
Impeller Type
Semi Open
Shaft Material
Stainless Steel
Inlet
1-1/2 in. NPT
Shipping Weight
55.5 lb.
Inlet Pressure
100 psi
Suction Lift
20 ft.
Item
Centrifugal Pump
Type
Self Priming
Maximum Case Pressure
165 psi
Voltage
115/230 VAC
Maximum Diameter Solids
1/8 in.
Volute Material
Cast Iron
Maximum Fluid Viscosity
100 SSU
Wetted Materials
Cast Iron, Buna N, Carbon, Ceramic
Maximum GPM @ Head
66 gpm @ 10 ft.
Width
6-7/8 in.
General
Application
For High-Volume Industrial and Commercial Applications Including Liquid and Chemical Transfer, Irrigation, Dewatering, and Processing Application
Includes
Manual
Best Efficiency Flow
30 to 50 gpm
Intake Type
NPT
Best Efficiency Head
50 to 62 ft
Intake and Discharge Size
1 1/2 in , 1 1/2 in
Compatible Discharge Pipe Size
1 1/2 in
Maximum Feet of Head
82 ft
Compatible Intake Pipe Size
1 1/2 in
Minimum Media Temperature
40 Degrees F
Discharge Type
NPT
Motor Enclosure Type
ODP
Flow Rate @ 10 ft of Head (Maximum)
66 gpm
Motor Frame Designation
56J
Flow Rate @ 15 ft of Head (Maximum)
65 gpm
Nameplate Voltage
115/230V AC
Flow Rate @ 20 ft of Head (Maximum)
64 gpm
Nominal Voltage
115/230V AC
Flow Rate @ 30 ft of Head (Maximum)
62 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 40 ft of Head (Maximum)
61 gpm
Shut Off Pressure (Maximum)
35 psi
Flow Rate @ 50 ft of Head (Maximum)
57 gpm
Solid Diameter (Maximum)
0.13 in
Flow Rate @ 60 ft of Head (Maximum)
41 gpm
Specific Gravity (Maximum)
1
Flow Rate @ 80 ft of Head (Maximum)
6 gpm
Suction Lift (Maximum)
20 ft
For Use With
Non-Flammable/Non-Abrasive Liquids, Compatible with Pump Material
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic
Impeller Design
Semi-Open
Product Description
Dayton self-priming centrifugal pumps are close-coupled to continuous duty motors and designed to provide high volume service for industrial and commercial applications. These applications include process applications, for nonflammable liquids compatible with pump component materials, liquid and chemical transfer, dewatering, irrigation, and decorative water features.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Documents
Item Barcode
Pump,Centrifugal,3/4hp
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4UA69 | Pump, Centrifugal, |
 | UNSPSC CODES | 40151503 | |
 | VMRS (ATA) CODES | 053-006-009 | Pump, Centrifugal, |
