TRUMETER

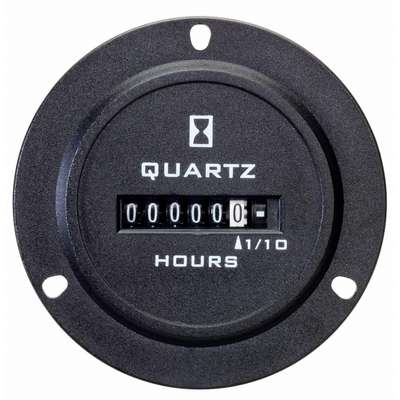

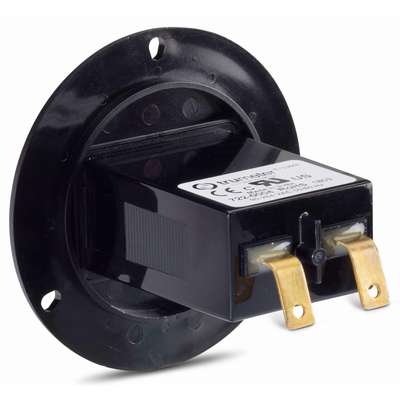

Trumeter Hour Meter, 120 to 240VAC Operating Voltage, Number of Digits: 6, Round Bezel Face Shape

Hover over image to magnify
Hour Meter,Ac Quartz
PI_Asset_1756196
PI_Asset_1768900
Hour Meter,Ac Quartz
PI_Asset_1756196
PI_Asset_1768900

#912246-7 | Pkg Qty: 1

$33.06 pkg | $33.06 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bezel Face Shape
Round
Material of Construction
Black Polymer
Bezel Face Size
2.80 in. dia.
Mfr. Part Number
722-0004
Bezel Face Type
Flange Mount
Mounting Method
3-Screw
Bezel to Back Length
1.5 in.
Number of Digits
6
Brand
TRUMETER
Package Quantity
1
Display Type
Electromechanical
Reset Type
Non Resettable
Display Units
Hours/Tenths
Shipping Weight
.25 lb.
Elapsed Time To
99999.9
Temperature Range
-40 deg. F to 185 deg. F
Fits
2.0 in. dia Panel Opening
Terminal Type
Spade
Fits Panel Cut Out
2 in. dia.
Type
Voltage Quartz, AC
Hz
50/60 Hz
Voltage
90 to 264 VAC
Item
Hour Meter
General
Operating Voltage
120 to 240V AC
Time Range
0 to 99999.9

Product Description

Redington Hour Meters and Counters 722/732 Series

  • Sealed black polymer case Hours white on black; 10ths black on white 6-digit display has 0.125" characters 1/4" (6.3mm) spade terminals Reliable quartz accuracy for precise timekeeping and long service life. Accuracy: ±0.02 over entire range. Temp. range: -40° to 185°F. Mount easily with clip or mounting holes. UL and C-UL Recognized and CE Certified. Select models conform to NEMA 4X and 12 when used with proper gasket.

Expertly Selected Product Pairings

Hour Meter Gasket,3-Hole
$2.58 pkg | $2.58 ea
Item: 940799-6 | Pkg Qty: 1
