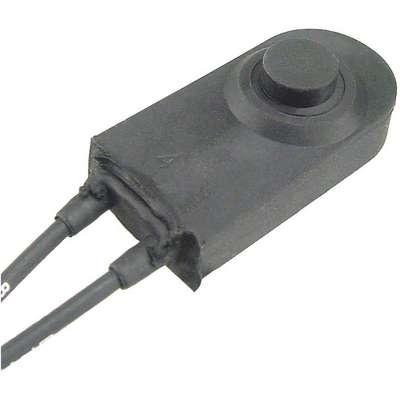

CPI SPST Weatherproof Switch, Momentary with Wire Lead Terminals

Hover over image to magnify
Snap Action Switch, 5 Amps,1.
Snap Action Switch, 5 Amps,1.

#912206-2 | Pkg Qty: 1

$35.68 pkg | $35.68 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
5 A @ 125 VAC
Length
1.61 in.
Action
Momentary
Mfr. Part Number
B7151-516
Amperage
5 A
Number of Operators
1
Brand
CPI
Operating Temperature Range
-4 to 221
Color Family
Black
Package Quantity
1
Contact Form
SPST
Shipping Weight
.05 lb.
Contact Rating
5 A @ 125 VAC/28 VDC
Stem Length
0.38 in.
Contact Type
SPST
Switch Function
Momentary
DC Contact Rating
5 A @ 28 VDC
Terminals
Wire Lead
Depth
1/2 in.
Type of Actuator
Button
Height
1.61 in.
Type of Operator
Push Button
Housing Color
Black
Voltage
28 VDC - 125 VAC
Housing Material
Thermo Plastic Rubber
Width
0.81 in.
Item
Weatherproof Switch
General
Buttons
1
Operating Temp. Range
-40° to 221°F
Includes
Wire Leads, 18 in

Product Description

Snap-Action Switches

  • Hand-operated, waterproof, rubber-coated switches are suitable when weather or environmental conditions are a concern for nonsealed switches. Submersible with proper wire sealing. Button switches have soft-touch button. Part Number: 5DKF1 has a rubber-coated momentary switch; No. 5DKG2 is a pendant switch with maintained On/Off buttons. Part Number: 5DKF3 has a stainless steel shroud with thermoplastic cover, bushing and encapsulated switch. Lever Switch No. 5DKG4 is neoprene rubber encapsulated, has a large actuating area for easy operation, and V-back construction for pipe or handle mounting.
Item Barcode
9122062
Snap Action Switch, 5 Amps,1.
 NameItemDescription
Grainger DropshipGrainger Dropship5DKF1Snap Action Switch, 5
UNSPSC CODESUNSPSC CODES39122209
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Snap Action Switch, 5
