ARO

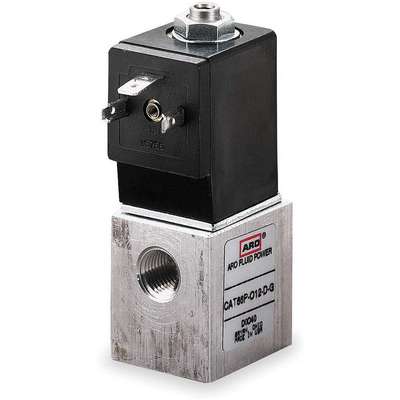

Solenoid Air Control Valve: 12V DC, Solenoid / Spring, 1/4 in Pipe Size, 7 cfm Max. CFM - Valves
Hover over image to magnify
#912153-2 | Pkg Qty: 1
$150.28 pkg | $150.28 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator/Return
Solenoid/Spring
Operational Pressure Range
0 to 150 psi
Air Consumption
scfm
Overall Height
3-1/2 in.
Ambient Temperature
Up to 122 deg. F
Overall Length
2-1/8 in.
Body Style
Body Ported
Overall Width
1-1/4 in.
Brand
ARO
Package Quantity
1
CFM
7
Pipe Size
1/4 in.
Coefficient of Volume
0.2
Port Size
1/4 in.
Coil
12 VDC
Power Consumption
15 W
Design
Compact, Allows Valves to be Pipe Nippled Directly to Cylinder Port
Shipping Weight
.7 lb.
Electrical Connections
DIN Connectors
Type
Miniature Direct-acting, 3 Way, 2 Position
Item
Solenoid Air Control Valve
Valve Actuator/Return
Solenoid / Spring
Maximum CFM
7
Valve Type
3-Way, 2-Position
Maximum Operating PSI
150
Valve Ways/Positions
3-Way/2-Position
Mfr. Part Number
CAT66P-012-D
Voltage
12 VDC
NEMA Classification
NEMA 4
Width
1-1/4 in.
General
Actuator / Return
Solenoid/Spring
Shifting Technology
Direct
Max. CFM - Valves
7 cfm
Standards
CSA
Normally Open / Normally Closed
Normally Closed
Valve Actuator / Return
Solenoid / Spring
Pneumatic Valves Product Group
Solenoid Air Control Valve
Valve Ways and Positions
3-Way/2-Position
Product Description
ARO® solenoid air control valve features a quick-change coil (sold separately) that you can easily interchange or replace. Valve is compact and designed so it can be pipe nippled directly to the cylinder port. The valve has sufficient flow for cylinders 1" dia. and smaller and is suitable for air or inert gas.
Expertly Selected Product Pairings
Item Barcode
Valve,Solenoid,1/4 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4HN46 | Valve, Solenoid,1/4 |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-008-006 | Valve, Solenoid,1/4 |
