CARLING TECHNOLOGIES

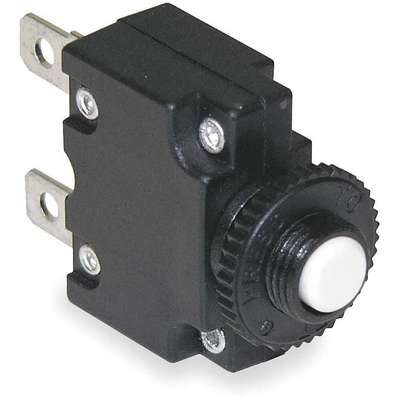

Carling Technologies Circuit Breaker, Thermal Circuit Breaker Type, Push Button Switch Type, Number of Poles: 1
Hover over image to magnify
#912148-5 | Pkg Qty: 1
$4.83 pkg | $4.83 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
125/250VAC
Length
1.15 in.
Actuator Color
White
Maximum Air Rating
Not Rated
Air @ 120 VAC
Not Rated
Maximum DC Voltage
32
Air @ 125 VDC
Not Rated
Maximum Wire Size
14 AWG
Air @ 240 VAC
0.2kA
Mfr. Part Number
CMB-053-27G3N-W-A/05
Air @ 277 VAC
Not Rated
Mounting Type
3/8 in. Collar
Air @ 65 VDC
Not Rated
Number of Poles
1
Amperage
5 A
Package Quantity
1
Amps
5 A
Phase
Single
Brand
CARLING TECHNOLOGIES
Shipping Weight
.04 lb.
Circuit Breaker Type
Thermal
Switch Type
Push Button
Curve Type
Medium
Terminal Connection
1/4 in. Tab
DC Voltage Rating
32VDC
Type
Collar Mount
Depth
1.78 in.
Voltage
250
Item
Panel Mount Circuit Breaker
Width
0.55 in.
General
AIR @ 240VAC
0.2KA
Min. Operating Temp.
14°F
Actuator Legend
Press to Reset
Mounting Hole Thread Size
3/8"-27
Circuit Breaker Actuator
Push Button
Panel Cutout Size
0.343 in x 0.382 in
Max. Operating Temp.
140°F
Standards
UL/cUL/CSA/TUV/CE/UL 1500/ISO8846 for Ignition Protection/Marine
Product Description
Panel-Mount Circuit Breakers
- Thermal Trip
- Operating temp.: -10° to 60°C Functionally equal: ETA, Joemex, and MPI
- Compact, precision-design breakers have few moving parts a cost-effective alternative to hydraulic/magnetic breakers. They offer extremely reliable circuit protection with high resistance against shock and vibration. Half-shell construction. 50/60 Hz.
Expertly Selected Product Pairings
Item Barcode
Breaker,Circuit,5 Amp
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4VA62 | Breaker, Circuit,5 Amp |
 | UNSPSC CODES | 39121601 | |
 | VMRS (ATA) CODES | 034-004-010 | Breaker, Circuit,5 Amp |
