Anderson Power Products Battery/Cable Connector Lockout, Polycarbonate, 12V, 18V, 24V, 36V, 48V, 72V, 80V Voltage

Name: Anderson Power Products Battery/Cable Connector Lockout, Polycarbonate, 12V, 18V, 24V, 36V, 48V, 72V, 80V Voltage
Brand: ANDERSON POWER PRODUCTS
SKU: 9121135
Price: 34.86 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#912113-5Pkg Qty: 1

$34.86 pkg | $34.86 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Mar 25.

Technical Specifications

Key Specifications

Brand

ANDERSON POWER PRODUCTS

Material

Polycarbonate

Color Family

Red

Maximum Number of Padlocks

Encased

Maximum Shackle Diameter

1/4 in.

Fits

Mfr. No. 6320G1, 6321G1 and 6322G1 2/0 AWG, 350 Amp, Battery/Cable Connectors

Mfr. Part Number

SB350-LOCKOUTG

Height

5-11/16 in.

Package Quantity

Item

Battery/Cable Connector Lockout

Shipping Weight

.15 lb.

Legend

No Legend

Voltage Rating

12 V, 18 V, 24 V, 36 V, 48 V, 72 V, 80 V

Length

1-5/16 in.

Width

2-3/4 in.

General

Max. Cord Dia.

No Cord

Standards

OSHA, ANSI, DOE Lockout/Tagout Regulation

Padlock Shackle Max. Dia.

1/4 in

Product Description

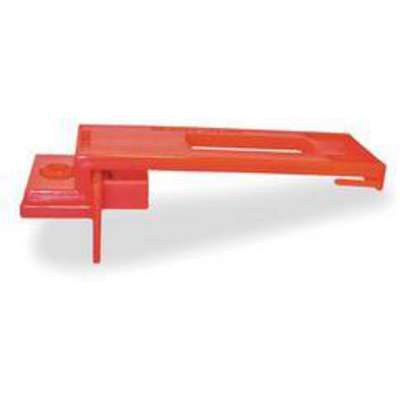

Connector Lockouts

Prevent cable connectors from being accidentally plugged in and energized. Red polycarbonate housing accepts a padlock with standard 3/8" shackle or a tagged cable tie. Devices are mechanical-keyed and color-coded by voltage.
Battery and Cable Connectors
Silver-plated electrolytic copper contacts offer low resistance and high conductivity. Annealed barrel ensures even crimping. Connectors are male/female, with 1-pc., impact-resistant polycarbonate housings. Solid barrel contacts are flared for easy insertion of stripped wire or cable, and supported by tempered stainless steel leaf springs to maintain constant pressure and vibration resistance.
