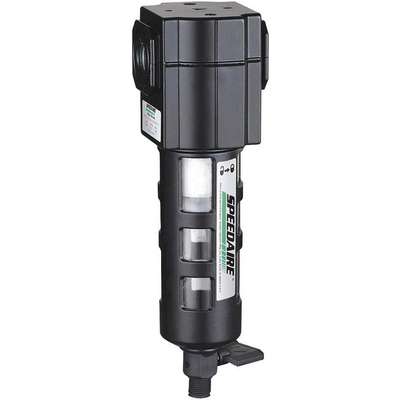

Compressed Air Filter: Particulate, 1/4 in NPT, 5 micron, 55 cfm, 150 psi Max Op Pressure

Name: Compressed Air Filter: Particulate, 1/4 in NPT, 5 micron, 55 cfm, 150 psi Max Op Pressure
Brand: SPEEDAIRE
SKU: 9121117
Price: 29.17 USD
Availability: InStock

Hover over image to magnify

#912111-7 | Pkg Qty: 1

$29.17 pkg | $29.17 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Air Consumption

scfm

Maximum Temperature (Deg. F)

125

Bowl Material

Polycarbonate with Guard

Mfr. Part Number

4ZL28

Brand

SPEEDAIRE

NPT

1/4 in.

Drain Type

Manual

Overall Height

6.58 in.

Filter Rating

5 micron

Overall Width

1.95 in.

Housing Material

Zinc

Package Quantity

Item

Compressed Air Filter

Pipe Size

1/4 in. NPT

Maximum Flow

55 cfm

Product Size

Compact

Maximum Flow (CFM)

55 CFM

Shipping Weight

1.25 lb.

Maximum Pressure

150 psi

Type

General Purpose

Maximum Temperature

125 deg. F

Width

1.97 in.

General

Air Flow Direction

Left to Right

Filter Element Material

Compressed Air

Air Inlet Gender

Female

Filter Media

Compressed Air

Air Inlet Type

NPT

Filter Rating - Air Treatment

5 micron

Air Outlet Gender

Female

For Fluid Type

Compressed Air

Air Outlet Size

1/4 in

For Removal Of

Particles, Water

Air Outlet Type

NPT

For Substance Type

Air

Bowl Material - Air Treatment

Polycarbonate with Guard

Includes

Bowl Guard

Bowl Size - Air Treatment

2.2 oz

Max. Flow - Air Treatment

55 cfm

Connection Size - Air Treatment

1/4 in NPT

Max. Flow Range - Air Treatment

51 to 60 cfm

Drain Part Compatibility

1AKG4A

Max. Incoming Pressure - Air Treatment

150 psi

Filter Bowl Capacity

2.2 oz

Minimum Operating Pressure

1 MPa

Filter Bowl Guard Included

Yes

Modular Connection

No Modular Connection

Filter Bowl Guard Material

Iron

Size - Air Treatment

Compact

Filter Bowl Material

Plastic

System Location

Air Line

Product Description

Features a modular connector that allows easy removal and swap out. For the Max. Flow, CFM is based on 90 psig inlet and 5 psig pressure drop.
