CHICAGO PNEUMATIC

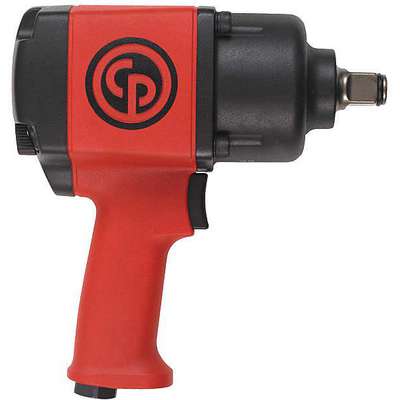

Chicago Pneumatic General Duty Air Impact Wrench, 3/4" Square Drive Size 100 to 950 ft.-lb.

Hover over image to magnify
Air Impact Wrench,3/4 In. Dr.,
Air Impact Wrench,3/4 In. Dr.,
Chicago Pneumatic General Duty Air Impact Wrench, 3/4" Square Drive Size 100 to 950 ft.-lb. Video

#912099-6 | Pkg Qty: 1

$673.65 pkg | $673.65 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Housing
Aluminum Cast
Air Inlet
3/8 in.
Housing Material
Aluminum Cast
Air Inlet Size
3/8 in. NPT
Item
Air Impact Wrench
Air Tool Body Style
Pistol
Maximum Bolt Capacity
1-1/8 in.
Air Tool Drive Size
3/4 in. Square
Maximum Torque
1200 ft.-lb.
Air Tool Retainer Type
Ring
Mfr. Part Number
CP7763
Anvil
Standard
Minimum Hose Size
1/2 in.
Anvil Length
1.000 in.
Overall Length
8-4/5 in.
Avg CFM @ 15 Sec Run Time
7-1/2
Package Quantity
1
Blows per Minute
900
Required Pressure
90 psi
Brand
CHICAGO PNEUMATIC
Retainer Type
O-Ring
CFM @ Full Load
30
Shipping Weight
13 lb.
Duty
General Duty
Style
Pistol Grip
Free Speed
6300 RPM
Tool Weight
11.57 lb.
Handle
Pistol
Torque Range
100 to 1200 ft.-lb.
Handle Material
Aluminum Cast
Type
General Duty
Handle Type
Pistol Grip
General
Air Pressure
90 psi
Max. Air Pressure
90 psi
Features
Compact Size, Ideal for Spring Work, Pinion Nut, Tractor Pad Removal, Truck Tire Work and Major Engine Tear Downs
Min. Air Pressure
90 psi
Includes
Torque Regulator

Product Description

Compact pistol-grip air-powered impact wrenches (sometimes called stubby wrenches) have a shorter front-to-back length than standard pistol-grip impact wrenches, allowing for access to tight spaces. They have higher torque and larger drive sizes than inline impact wrenches, but often have lower torque than full-size tools. The pistol grip has a trigger that is pressed to activate the wrench. Pistol grips provide ergonomic handling when working on vertical surfaces from the user's waist to chest, horizontal surfaces at mid-thigh or lower, and horizontal surfaces directly overhead.
