Home All Products Fluid Transfer & Pumps Drum & Barrel Pumps Hand Operated Drum Pumps SKU: 912098-8
Share
Print
DAYTON

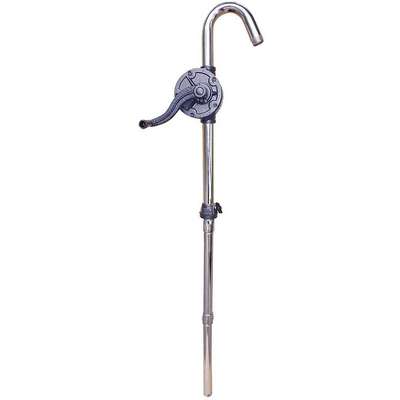

Hand Operated Drum Pump, Rotary, Basic Pump with Spout, For Container Type Bucket, Drum, Pail

Hover over image to magnify
Pump,Rotary,15 Gpm
Pump,Rotary,15 Gpm

#912098-8 | Pkg Qty: 1

$108.35 pkg | $108.35 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Action Type
Rotary
Mfr. Part Number
4HA38
Adapter Diameter
2 in.
Outlet Size
1-1/4" OD
Adapter Material
Cast Iron
Package Quantity
1
Adapter Type
2" Bung
Power Source
Hand Operated
Brand
DAYTON
Pump Body Material
Cast Iron
Discharge Tube Length
14-1/4"
RPM
135
Discharge Tube Outlet ID Size
1-1/16"
Seal
Buna
Discharge Tube Outlet Outside Diameter
1-1/4"
Seal Material
Buna-N
Discharge Tubing Material
Steel
Self-Priming
Yes
For Use On
15, 30, 55 gal. Drums
Shipping Weight
17.35 lb.
GPM
15 GPM @ 135 RPM
Suction Design
3 Piece Tube
Hand Operated Pump Action Type
Hand Operated Rotary Pumps
Suction Tube Length
40 in.
Housing Material
Cast Iron
Suction Tube Outlet Outside Diameter
1-1/4 in.
Inlet Size
1" FNPT
Suction Tube Type
3-Piece Tube
Item
Hand Operated Drum Pump
Type
Rotary Action
Maximum Liquid Temperature
140°F
Wetted Materials
Buna-N, Cast Iron, Steel
Maximum Viscosity
2000 SSU
pH Range

Metered
No
General
Application
Lubricating Oils, Fuel Oils, Antifreeze
Includes
Suction Tube and Curved Discharge Spout
Bung Connection Dia.
2 in
Includes Bung Adapter
Yes
Compatible Chemicals
Automatic Transmission Fluid, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Kerosene, Sodium Hypochlorite/Bleach (to 20%)
Includes Spout
Yes
Discharge Tube Outlet ID
1 1/16 in
Includes Suction Tube
Yes
Discharge Tube Outlet OD
1 1/4 in
Max. Flow Rate
15 gpm @ 120 strokes
For Container Size
15 gal, 30 gal, 55 gal
Max. Fluid Temp.
140 Degrees F
For Container Type
Bucket, Drum, Pail
Not Recommended Chemicals
DEF, Fresh Water, Salt Water
For Media Type
Automatic Transmission Fluid, Bleach, Diesel Fuel, Ethanol, Kerosene, Water
Pump Package Type
Basic Pump with Spout
For Use With
Antifreeze, Fuel Oils, Lubricating Oils
Suction Tube OD
1 1/4 in
Housing Material - Pumps
Cast Iron

Product Description

Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
