HONEYWELL MICRO SWITCH

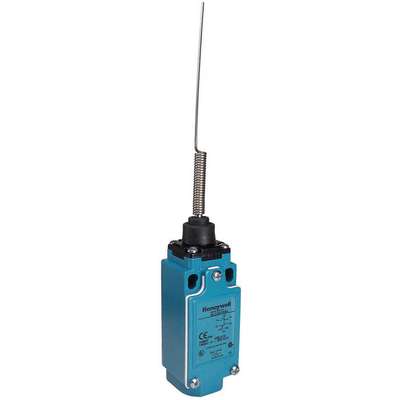

Honeywell Micro Switch Wobble Stick General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Wobble Movement

Hover over image to magnify
Limit Switch,Wobble,Catwhisker,
Limit Switch,Wobble,Catwhisker,

#912039-8 | Pkg Qty: 1

$115.30 pkg | $115.30 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 300 V
Height
2.16 in.
Actuator Length
5.50 in.
IP Rating
66
Actuator Location
Top
Item
General Purpose Limit Switch
Actuator Style
Wobble Stick
Limit Switch Style
General Purpose Limit Switch
Amperage
10 A
Mfr. Part Number
GLCA01K8A
Arm Material
Stainless Steel
Movement
Wobble
Basic Actuator Style
Wobble Stick
NEMA Rating
1, 4, 12, 13
Body Depth
1.18 in.
Operating Force
0.90 in.-lb.
Body Height
2.17 in.
Operating Temperature Range
-1 deg. F to 185 deg. F
Body Material
Zinc Die Cast
Package Quantity
1
Body Style
Miniature
Series
Glc/Gls
Body Width
1.2 in.
Shipping Weight
.55 lb.
Boot Sealed Actuator
No
Style
Mechanical Actuator Operated
Brand
HONEYWELL MICRO SWITCH
Threaded for Panel Mounting
No
Contact Form
1NC/1NO, SPDT, Snap Action
Travel
Maximum Pretravel 16, Differential Travel 10
Contact Type
Snap Action
Type
Wobble - Cat Whisker Actuator
DC Contact Rating
10 A @ 250 V
Voltage
300 VAC/250 VDC
Depth
1.18 in.
Voltage Rating
300 VAC/250 VDC
Description/Special Features
Zinc Die-Cast EN 50047 Housing, 0.5 in - 14 NPT Conduit, shock 50 g per IEC 68-2-27c (w/o Actuator), vibration 10 g per IEC 68-2-6 (w/o Actuator), Expected Mechanical Life 5 Million Operations
Width
1.2 in.
Electrical Connection
Screw Terminals
Wiring Entry
1/2 in. NPT
Hazardous Location
No
General
AC Contact Rating - Limit Switch
10A @ 300V
DC Contact Rating - Limit Switch
10A @ 250V
Actuator Length - Limit Switch
5.5 in
Mounting - Limit Switch
Surface
Actuator Location - Limit Switch
Top
Mounting Hole - Limit Switch
(4) 0.21 in dia
Actuator Style - Limit Switch
Wobble Stick
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Basic Actuator Style - Limit Switch
Wobble Stick
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Body Depth - Limit Switch
1.18 in
Operating Temp. Range
-13° to 185°F
Body Height - Limit Switch
2.17 in
Special Features
Zinc Die-Cast EN 50047 Housing, 0.5 in - 14 NPT Conduit, shock 50 g per IEC 68-2-27c (w/o Actuator), vibration 10 g per IEC 68-2-6 (w/o Actuator), Expected Mechanical Life 5 Million Operations
Body Style - Limit Switch
Miniature
Standards
UL, CE, CSA, CCC. IEC 947-5-1, EN60947-5-1, UL508, UL746-C
Body Width - Limit Switch
1.2 in
Stem Thread - Limit Switch
No Stem
Contact Form- Switches
1NC/1NO

Product Description

Designed for applications including machine tools, material handling, equipment, packaging machinery, textile machinery, construction vehicles, and lift trucks, this switch features rugged housing and galvanically isolated contacts. The contacts allow the switch to control separate circuits. The switch is engineered to perform up to 10 million operations.
