MILLER ELECTRIC

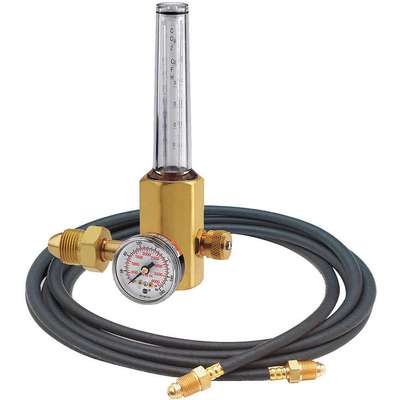

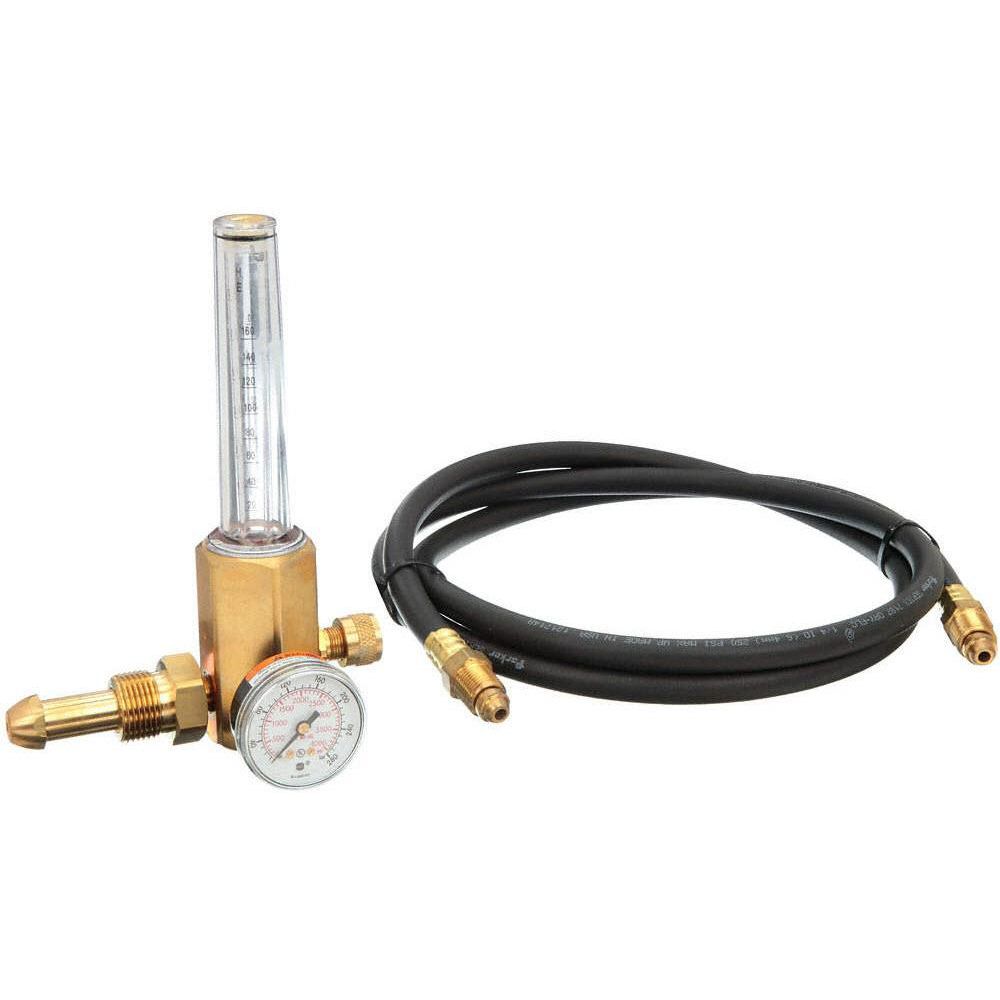

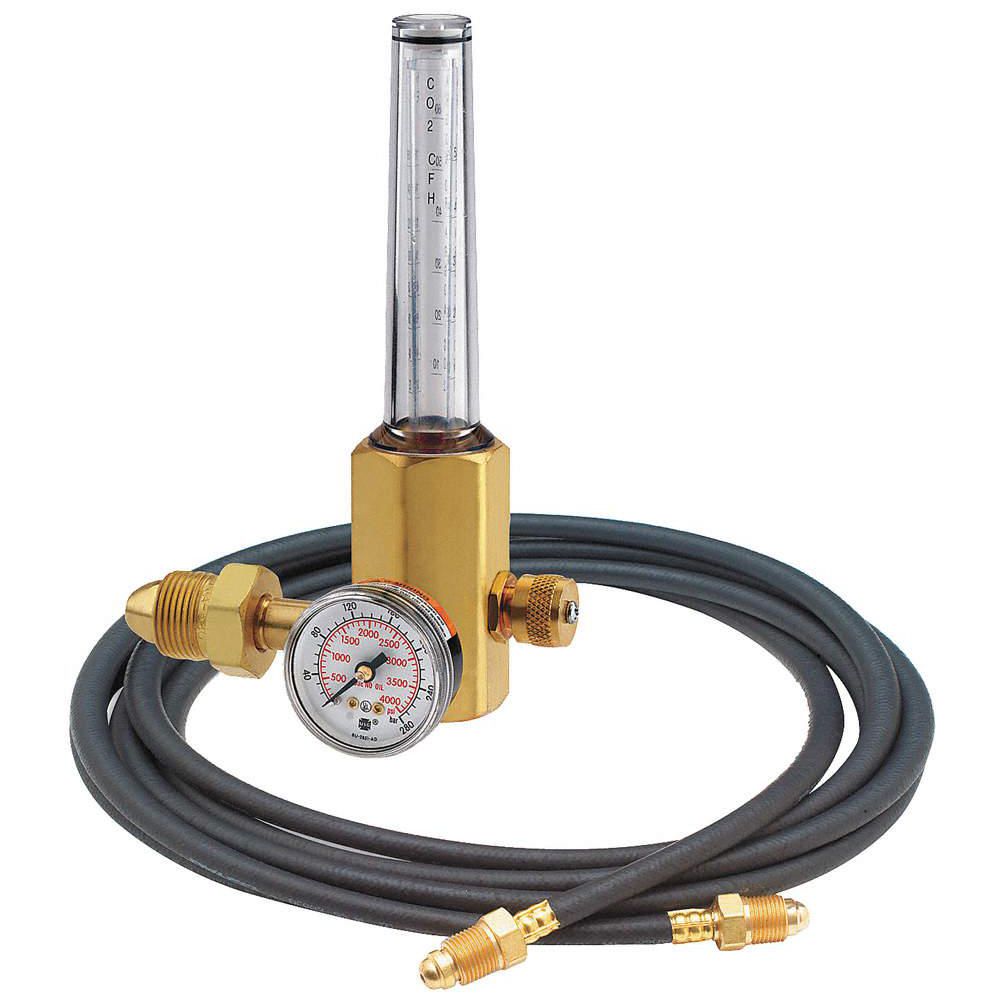

Miller Electric H2051 Series Flowmeter Regulator, 50 psi, 2.000", Argon, Carbon Dioxide, Helium
Hover over image to magnify
#912037-3 | Pkg Qty: 1
$237.03 pkg | $237.03 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Diameter
2.000 in.
Maximum Inlet Pressure
3000 psig
Body Material
Brass
Mfr. Part Number
H2051B-580H
Brand
MILLER ELECTRIC
Outlet Connection
5/8 in.-18 F RH
CGA Connection Inlet
580
Overall Length
3-3/4 in.
Cylinder Gas
Argon, CO2, Helium
Package Quantity
1
Delivery
0 to 50 scfh CO2, 0 to 160 scfh He, 0 to 60 scfh Ar/CO2 Mix
Regulator Supply Type
Cylinder
Delivery Pressure Range
50 psi
Series
H2051
Gas Service
Argon, Carbon Dioxide, Helium
Shipping Weight
3.08 lb.
Gauge Size
1-1/2 in.
Stages
Single Stage
Gauges Delivery Pressure
50 psi
Supply Pressure Gauge
0 to 4000 psi
Inlet Connection
CGA-580
Type
Single Stage Flowmeter Regulator
Item
Flowmeter Regulator and Hose Kit
General
Application
For Mig and Tig Welding Applications
Inlet Connection Type
NGO
Argon Flow Rate (Maximum)
60 scfh
Inlet Thread Direction
Right Hand
CGA Connection Outlet
5/8"-18 RH Internal
Maximum Flow Rate
60 scfh (Argon) ; 50 scfh (Carbon Dioxide) ; 160 scfh (Helium)
CGA Number
CGA 580
Mounting Type
Cylinder
Carbon Dioxide Flow Rate (Maximum)
50 scfh
Number of Stages
Single Stage
Compatible Gas Type
Argon, Carbon Dioxide, Helium
Outlet Connection Gender
Female
Gauge Diameter
1 1/2 in
Outlet Connection Size
5/8"-18
Helium Flow Rate (Maximum)
160 scfh
Outlet Connection Type
UNF
Includes
6 ft Hose With Inert Hose Connections, Precision Flow-Adjustment Valve
Outlet Pressure (Maximum)
50 psig
Inlet Connection Gender
Female
Outlet Thread Direction
Right Hand
Inlet Connection Size
0.965"-14
Regulator Application
Welding
Product Description
Flowmeter regulators incorporate flowmeter and regulator into one compact unit. Use for shielding gas with argon or CO2 in MIG and TIG welding.
