WILKERSON

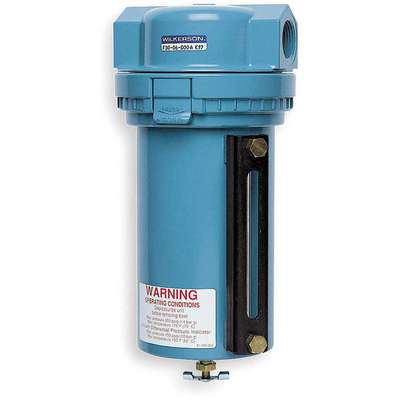

Compressed Air Filter: Particulate, 1 in NPT, 5 micron, 323 cfm, 200 psi Max Op Pressure
Hover over image to magnify
#912036-3 | Pkg Qty: 1
$253.44 pkg | $253.44 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Maximum Temperature (Deg. F)
150
Bowl Material
Metal with Sight Gauge
Mfr. Part Number
F30-08-G00
Brand
WILKERSON
NPT
1 in.
Drain Port Size
1 in.
Overall Height
9.8 in.
Drain Type
Manual
Overall Width
4.8 in.
Filter Rating
5 micron
Package Quantity
1
Item
Compressed Air Filter
Pipe Size
1 in. NPT
Maximum Flow
280 cfm
Product Size
Jumbo
Maximum Flow (CFM)
280 CFM
Shipping Weight
6.05 lb.
Maximum Pressure
200 psi
Type
General Purpose
Maximum Temperature
150 deg. F
Width
4.8 in.
General
Air Inlet Type
NPT
For Fluid Type
Water
Air Outlet Size
1 in
For Substance Type
Water, Particulate Contamination
Air Outlet Type
NPT
Max. Flow - Air Treatment
280 cfm
Bowl Material - Air Treatment
Metal with Sight Gauge
Max. Flow Range - Air Treatment
201 to 300 cfm
Bowl Size - Air Treatment
26.0 oz
Max. Incoming Pressure - Air Treatment
200 psi
Connection Size - Air Treatment
1 in NPT
Number of Air Inlets
1
Filter Bowl Capacity
2 oz
Number of Air Outlets
1
Filter Bowl Guard Included
Yes
Pressure Drop
5 psid
Filter Bowl Material
Metal
Sight Gauge Included
Yes
Filter Element Material
Polyethylene
Size - Air Treatment
Jumbo
Filter Rating - Air Treatment
5 micron
System Location
Air Line
Product Description
Rugged, lightweight construction with high-flow capability and excellent water removal efficiency. Has a positive bayonet bowl latch and barbed manual drain connection with pipe-away. For the Max. Flow, the CFM is based on 100 psig inlet and 5 psig pressure drop.
