DAYTON

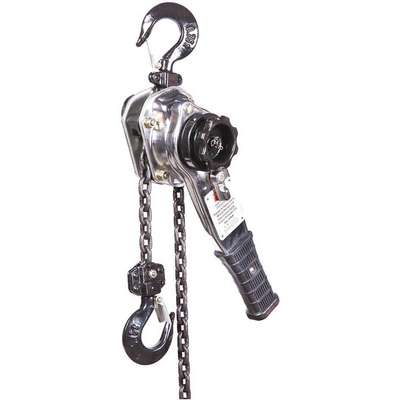

Dayton Lever Chain Hoist, 1500 lb. Load Capacity, 10 ft. Hoist Lift, 29/32" Hook Opening
Hover over image to magnify
#912033 | Pkg Qty: 1
$446.58 pkg | $446.58 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brake
Weston Style, Double Disc Brake
Lever Length
10-7/16 in.
Brand
DAYTON
Load Capacity
1500 lb.
Chain
Alloy Steel - G100
Mfr. Part Number
3TP92
Chain Length
10-39/64 ft.
Mfr. Warranty Length
1 yr.
Finish
Housing, Lever: Chrome Plated; Side Plates, Chain Guides: Zinc Plated; Hooks, Handwheel: Powder Coating
Minimum Between Hooks
11-13/16 in.
Hoist Lift
10 ft.
Package Quantity
1
Hoist Mount
Hook Mounted - No Trolley
Pull to Lift Rated Load
42 lb.
Hoist Overload Protection
No
Reeving
1
Hook Opening
29/32 in.
Shipping Weight
19 lb.
Item
Lever Chain Hoist
General
Hook Throat Opening
1-1/16"
Min. Between Hooks
11 13/16 in
Includes
Safety Latch Hooks
Standards
ANSI/ASME B30.21, EN13157
Load Capacity (Metric T)
3/4
Product Description
Lever-Operated 3/4- to 3-Ton Chain Pullers with Double Disc Brake
- Dual-stage reduction gearing Metric rating, 2200 lb./ton Hardened grade 80 steel load chain Load-tested Double disc brake provides exact load positioning and tensioning. Capacity-adjusted handle force minimizes overloading. Short handle stroke with ribbed grip rotates 360°. Flip selector to neutral for free chaining. Hardened swivel hooks with safety latches secure and align loads. Steel construction with zinc/nickel/chrome-plated finish. Meet ANSI/ASME B30.21 standards.
Documents
Item Barcode
Hoist,Chain,3/4T,10Ft Lift,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3TP92 | Hoist,Chain, 3/4T,10Ft |
 | UNSPSC CODES | 24101602 | |
 | VMRS (ATA) CODES | 055-012-012 | Hoist,Chain, 3/4T,10Ft |
