SHURFLO

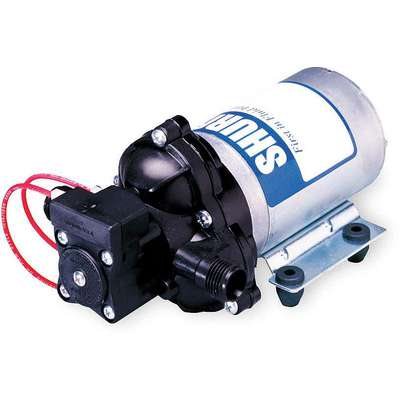

Diaphragm Pump: 1/2"-14 MSPT, 120V AC, 3.2 gpm Max. Flow, 45 psi Max. Pressure - Pumps
Hover over image to magnify
#911985-9 | Pkg Qty: 1
$269.46 pkg | $269.46 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Listing and CSA
Maximum Pressure
45 psi
Body Material
Polypropylene
Maximum Temperature (Deg. F)
170
Brand
SHURFLO
Mfr. Part Number
2088-394-154
Check Valve
Viton
Pack Quantity
1
Diaphragm Design
Santoprene
Pressure Off
45
Diaphragm Material
Santoprene
Pressure On
25
GPM @ 20 PSI
2.41
Pressure Switch
Operates on Demand
GPM @ 40 PSI
1.84
Prime in Feet
9
Housing Material
Polypropylene
Self-Priming
Yes
Inlet/Outlet
1/2 in.-14 MSPT
Shipping Weight
5.65 lb.
Item
Diaphragm Pump
Voltage
120 VAC
Maximum Flow
3.2 gpm
General
GPM @ 0 PSI
3.2 gpm
Max. Pressure - Pumps
45 psi
Housing Material - Pumps
Polypropylene
Voltage - Pumps
120V AC
Product Description
Sprayer Pumps
- Note: Not for use in potable water systems. Not for use with gasoline.
- Electric
- Thermally protected motors (except No. 4UN19) Sealless design
- Pumps can run dry without damage. Pressure demand switches automatically turn pumps off when the outlet is closed. Sealless design eliminates troublesome shaft seals and potential leakage into the motor.
- Flojet models are CSA and CE Certified.
- Part Numbers: 4UN18 to 4UN20
- Pumps come with 1 straight barb swivel fitting and one 90° elbow barb swivel fitting. Part Number: 4UN18 has heavy-duty heat sink for continuous-duty operation. Use with SHURflo® brand fittings only.
Expertly Selected Product Pairings
Item Barcode
Pump,Diaphragm,115 Vac
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4UN20 | Pump, Diaphragm, |
 | UNSPSC CODES | 40151548 | |
 | VMRS (ATA) CODES | 053-008-004 | Pump, Diaphragm, |
