SHRINK-KON

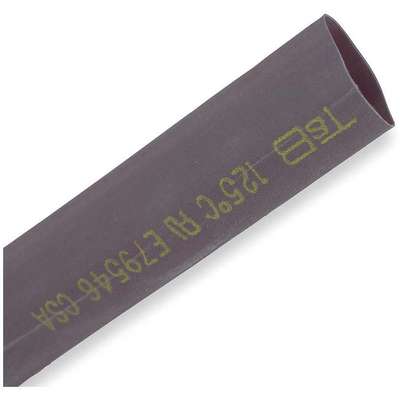

Shrink-Kon 6" Thin Wall Heat Shrink Tubing Cross-Linked Polyolefin, Shrink Ratio 2:1
Hover over image to magnify
#911951-7 | Pkg Qty: 10
$12.00 pkg | $1.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SHRINK-KON
Package Quantity
10
Color Family
Black
Shipping Weight
.1 lb.
Dielectric Strength
600 V
Shrink Temperature
248F
Flame Retardant
Yes
Shrink Tubing Adhesive Lined
No
Heat Shrink Tubing Shrink Ratio
2:1 Shrink Ratio
Shrink Tubing Inside Diameter Before Shrinking
0.750 in.
Inside Diameter After Shrinking
0.375 in.
Shrink Tubing Material
Cross-Linked Polyolefin
Inside Diameter Expanded Pre-Shrink
3/4 in.
Shrink Tubing Type
Heat Shrink Tubing
Item
Heat Shrink Tubing
Shrink Tubing Usable Temperature Range
-67 to 275F
Length
6 in.
Temperature Range
-67 deg. F to 275 deg. F
Material
Cross-Linked Polyolefin
Tube Material
Polyolefin
Material of Construction
Polyolefin
Use Shrink Tubing With Wire Size
4 to 3/0 AWG
Maximum Voltage
600 V
Wall Thickness After Shrinking
0.030 in.
Mfr. Part Number
CPO75006
Wall Type
Thin Wall
Minimum Shrink Temperature
248F
Width
3/4 in.
General
Features
Flame Retardant
Shrink Tubing Wall Thickness After Shrinking
0.03 in
I.D. After Shrinking
0.38 in
Standards
Meets UL 224, 125░C; CSA 22.2 No. 198.1, 125░C; MIL-DTL-23053/5 Class 1&2; AMS 3636 & 3637; DEF STAN 59-97, Issue 3, Type 2a
I.D. Before Shrinking
0.75 in
Tubing Wall Type
Thin Wall
Package Style
Individual Pieces
Use With Wire Size
4 AWG to 3/0 AWG
Shrink Tubing I.D. Before Shrinking
0.75 in
Product Description
Standard heat shrink tubing is used in general purpose industrial and commercial applications. It's flexible to conform to irregular shapes. It covers wire and cable and shrinks with heat to insulate, bundle, color-code, or provide strain relief.
Expertly Selected Product Pairings
Compliance & Restrictions
SDS Available View
Item Barcode
Tube,Heat Shrink,Pk10
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3KH60 | Tube,Heat Shrink,Pk10 |
 | UNSPSC CODES | 39121723 | |
 | VMRS (ATA) CODES | 053-007-002 | Tube,Heat Shrink,Pk10 |
