SJE-RHOMBUS

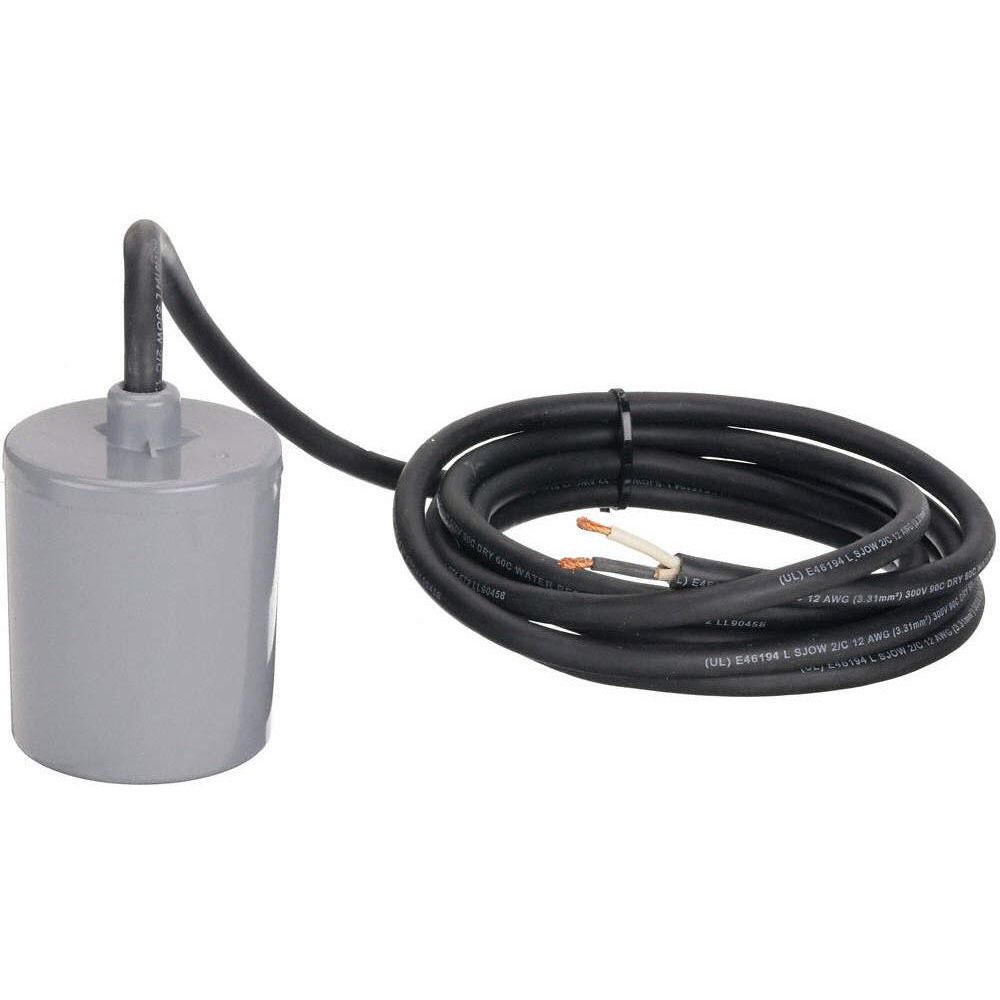

Float Switch Actuation Tether Float, Electrical Connection Wire Leads, Cord Length 15 ft
Hover over image to magnify
#911948-8 | Pkg Qty: 1
$158.60 pkg | $158.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL/CSA
Maximum Liquid Temperature
120°F
Amps
20A
Maximum Temperature (Deg. C)
50
Body Material
PVC
Maximum Temperature (Deg. F)
120
Brand
SJE-RHOMBUS
Maximum Voltage
250 VAC
Electrical Connection
Wire Leads
Mfr. Part Number
15AMDWOP
Float Diameter
3
Mounting Bracket Material
ABS/Nylon
Float Length
3.56
Mounts
Hose Clamp
Float Material
PVC
Package Quantity
1
Float Switch Contact Form
Normally Open
Pumping Range Minimum/Maximum
9 to 24
Float Switch Cord Length
15 ft.
Series
Ampmaster
Float Switch Material
PVC
Shipping Weight
2.75 lb.
Float Switch Off Point
45° Below Horizontal
Tether Length Minimum-Maximum
5 in. to 22 in.
Float Switch Type
Tether
Tether/Solid State
Tether
HP @ 1 Phase - 115 V
1 1/2 or Less
Turns On At
45 degrees
HP @ 1 Phase - 230 V
3 or Less
Type
Tether
Item
AmpMaster Pump Switch
Voltage
125/250 VAC
Maximum Amps Running
20
Wire Gauge
12 AWG
General
Contact Default
Normally Open
Minimum Tether Length
5 in
For Use With
Pumps
Nominal Voltage
110V AC, 220V AC
Includes
Mounting Clamp Assembly
Rated Voltage
120/230V AC
Maximum Tether Length
22 in
Switch Actuation
Tether Float
Product Description
These tether float switches are activated by a float that is attached to the pump by a flexible tether that can be adjusted so the pump starts and stops automatically at preset levels. They require more space to operate compared to vertical float switches since the flexible tether moves in an arc as the water level rises and falls in the sump basin.
