HUBBELL WIRING DEVICE-KELLEMS

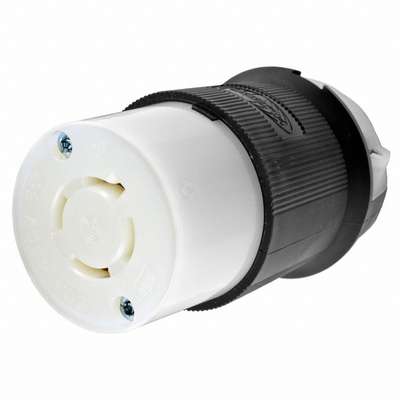

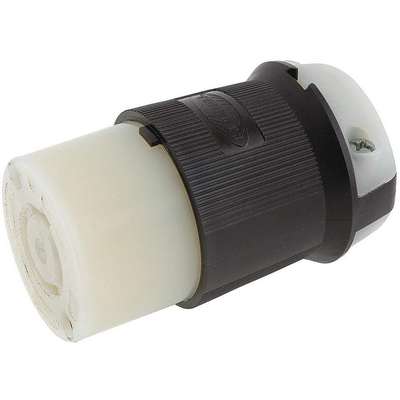

Hubbell Wiring Device-Kellems 20 Amp Industrial Grade Locking Connector, L16-20R NEMA Configuration, Black/White
Hover over image to magnify
#911932-2 | Pkg Qty: 1
$81.78 pkg | $81.78 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Mfr. Part Number
HBL2433
Amps
20 A
Midget Locking
No
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Boot Code
C
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L16-20
Cap Type
No Cap or Cover
NEMA Plug Configuration
L16-20R
Color Family
Black / White
NEMA Receptacle Configuration
L16-20R
Connection Orientation
Straight
Number of Poles
3
Contact Material
Brass
Number of Wires
4
Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in.
Corrosion Resistant
No
Overall Length
2.33 in.
Current Rating
20 A
Package Quantity
1
Description
Insulgrip, Grounding
Phase
Three
For Environment
Dry
Power Indicating Light
No
For Location
Indoor
Power Indicator
No
Grade
Industrial/Commercial
Shipping Weight
.25 lb.
Grounding
Grounded
Shrouded
No
HP
5 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
5 hp
Sub-Category
Connectors
Housing Material
Nylon
Type
Insulgrip Twist Lock
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Connector
Voltage
480VAC
Material
Nylon
Voltage Rating
480V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
8 AWG
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L16-20R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
480V AC
HP
5.0
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Connector Body,20 A,L16-20
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6A663 | Connector Body,20 A, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-007-002 | Connector Body,20 A, |
