Home All Products Hose & Hose Ends Hoses Steam Hoses SKU: 911921-9
Share
Print
APPROVED SUPPLIER

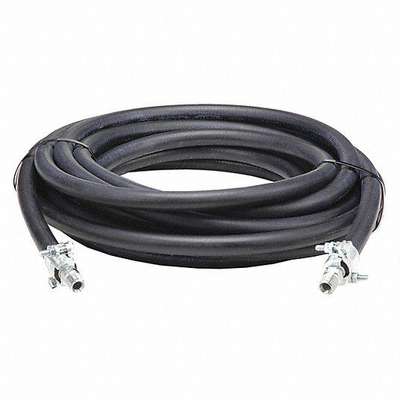

50 ft. Black Coupled Assembly Steam Hose; Temp. Range - Steam Hose: 0° to 450°F, 1/2" Inside Dia. -

Hover over image to magnify
Hose,Steam,1/2x50ft
PI_Asset_1507954
Hose,Steam,1/2x50ft
PI_Asset_1507954

#911921-9 | Pkg Qty: 1

$678.25 pkg | $678.25 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Hose Outside Diameter
1-1/16 in.
Color Family
Black
Item
Coupled Assembly Steam Hose
Fitting Size
1/2 in. x 1/2 in.
Mfr. Part Number
STM050-50MM-CR
Fitting Type
MNPT x MNPT
Package Quantity
1
Hose Inside Diameter
1/2 in.
Shipping Weight
25 lb.
Hose Length
50 ft.
Temperature Range
0 deg. F to 450 deg. F
Hose Material
EPDM
General
For Media Type
Acetic Acid, Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Glycerin, Isopropanol, Ketones, Methanol, Nitrogen Gas, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Steam, Sulfuric Acid, Water
Hose Fittings
Carbon Steel 1/2 in MNPT x Carbon Steel 1/2 in MNPT
Hose Configuration
Coupled Assembly
Hose Inside Dia.
1/2 in
Hose Cover Material
EPDM
Hose Outside Dia.
1 1/16 in
Hose Fitting A Material
Carbon Steel
Hose Tube Material
EPDM
Hose Fitting A Size
1/2 in
Max. Working Pressure @ 70 F
250 psi
Hose Fitting A Type
MNPT
Not Recommended Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrogen Peroxide, Kerosene, Liquid Propane, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Oxygen, Parrafins (Wax), Potassium Hydroxide (50%), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Hose Fitting B Material
Carbon Steel
Safety Factor
1899-12-31 10:01:00
Hose Fitting B Size
1/2 in
Standards
RMA Class C
Hose Fitting B Type
MNPT
Temp. Range
0 Degrees to 450 Degrees F

Product Description

These steam hose assemblies have an EPDM (ethylene propylene diene monomer) tube and cover that provide excellent resistance to ozone, good resistance to high temperatures and chemicals, and poor resistance to petroleum fluids.

Steam hose assemblies come with fittings installed on both ends of the hose for connecting it to compatible equipment. These hoses are designed to withstand high temperatures and pressures and are used for steam-cleaning, steam-pumping, heat-control, fire-prevention, thawing, blow-out service, and hoisting applications. They are used in harsh environments like steel mills, refineries, shipyards, foundries, and chemical plants. These steam hoses have a pinpricked cover that allows gases or vapors trapped in the hose carcass to escape so they don't create a blister in the cover of the hose.
