AIRMASTER FAN

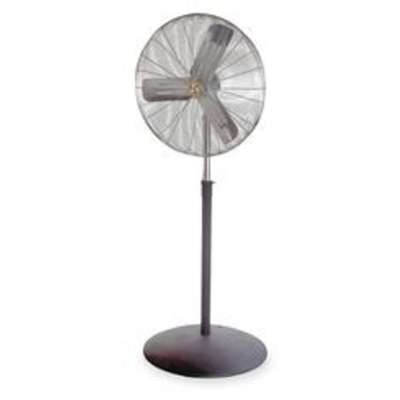

Airmaster Fan 30", Light-Duty Industrial Fan, Non-Oscillating, Stationary, Pedestal, 115 VAC

Hover over image to magnify
Air Circulator,30 In,Pedestal
Air Circulator,30 In,Pedestal

#911590-4 | Pkg Qty: 1

$545.42 pkg | $545.42 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
2,700/4,400/6,100 cfm
Mounting Location
Pedestal
Bearing Type
Ball
Mounting Location
Pedestal
Blade Diameter
30 in.
NEMA Plug Configuration
5-15P
Blade Material
Galvanized Steel
Number of Blades
3
Brand
AIRMASTER FAN
Number of Conductors
3
Drive Type
Direct
Oscillating
No
Duty
Light Duty
Package Quantity
1
Guard Material
Steel
Phase
1
Hz
60 Hz
Shaft Diameter
5/8 in.
Item
Industrial Fan
Shipping Weight
72 lb.
Mfr. Part Number
71586
Sound Level
76 dBA
Mobile/Stationary
Stationary
Standards
cULus
Motor Enclosure
Totally Enclosed Air Over
Thermal Protection
Automatic
Motor Insulation
Class B
Voltage
115V AC
Motor Type
Permanent Split Capacitor
Watts
230
General
Air Velocity @ 10 Ft.
800 fpm
Includes
Pedestal
Air Velocity @ 20 Ft.
500 fpm
Max. Ambient Temp.
104 Degrees F
Air Velocity @ 40 Ft.
200 fpm
Oscillation
Non-Oscillating
Air Velocity @ 60 Ft.
200 fpm
Shaft Dia.
5/8 in
Air Velocity @ 80 Ft.
100 fpm
Wheeled Base
Stationary
Environmental Applications
Commercial
Wire Guard Finish
Nickel Chrome
Fan Mounting Location
Pedestal

Product Description

Light-duty industrial pedestal fans cool light manufacturing areas, warehouses, and other dry, clean spaces. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have lower-horsepower motors with less-robust bearings.

Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
