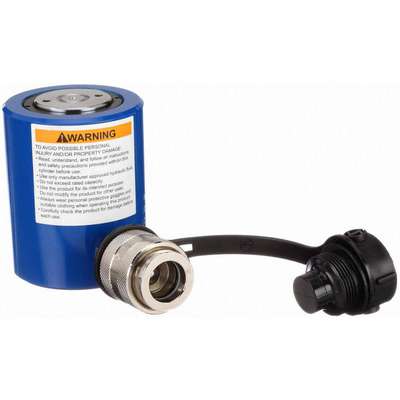

Hydraulic Ram, Low Profile, Body Material Steel, 10 ton, Stroke Length 1-1/2"

Name: Hydraulic Ram, Low Profile, Body Material Steel, 10 ton, Stroke Length 1-1/2"
Brand: WESTWARD
SKU: 9115129
Price: 485.02 USD
Availability: InStock

Hover over image to magnify

#911512-9 | Pkg Qty: 1

$485.02 pkg | $485.02 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

WESTWARD

Package Quantity

Item

Hydraulic Ram

Shipping Weight

9.05 lb.

Mfr. Part Number

13X029

General

Effective Push Area

2.36 sq in

Oil Capacity Push

3.54 cu in

Includes

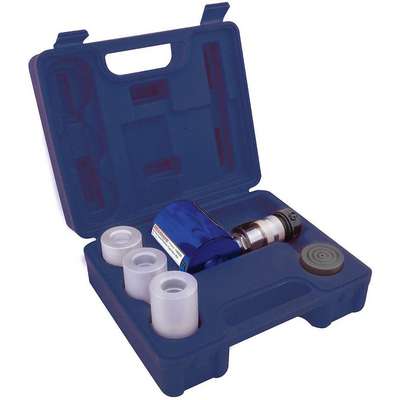

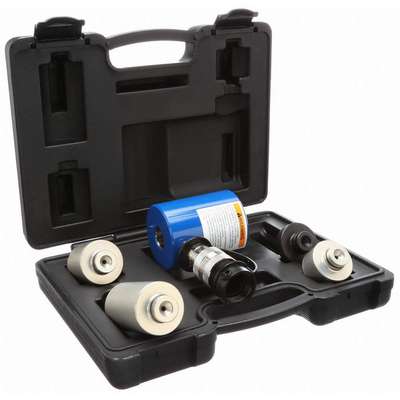

Low Profile Cylinder, Stroke 1.5 Inches, Capacity 10 Tons, 1 in, 2 in, & 3 in, Stackable Adapters that snap into the base of the cylinder, High Flow Ball Coupler and Dust Cap, & Poly Blow-molded Case

Retracted Height

3.48 in

Max. Push Capacity

10 ton

Single Acting/Double Acting

Single Acting

Nominal Stroke Length

1 1/2 in

Product Description

Lift-kit rams are used with cribbing blocks and stackable adapters that allow the rams to lift or separate items in stages. Rams are attached to hydraulic pumps to provide power for lifting and separating.

Standard hydraulic rams are used in general purpose applications for one-direction lifting and supporting. They are often used with fixtures to support tasks such as crimping, pressing, and punching. They can also be used standalone for lifting heavy objects.

Expertly Selected Product Pairings

$82.66 pkg | $82.66 ea

Item: 914453-6 | Pkg Qty: 1

Quick Coupler,Male3/8 In NPT

Select

Compliance & Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Documents

Westward 13X029 Short Ram Kit OIPM

Item Barcode

Hydraulic Ram Kit, 10 Ton

Cross References
Legal

Name	Item	Description
Grainger Dropship	13X029	HYDRAULIC RAM KIT,10TN
UNSPSC CODES	27121604
VMRS (ATA) CODES	053-006-009
