SQUARE D

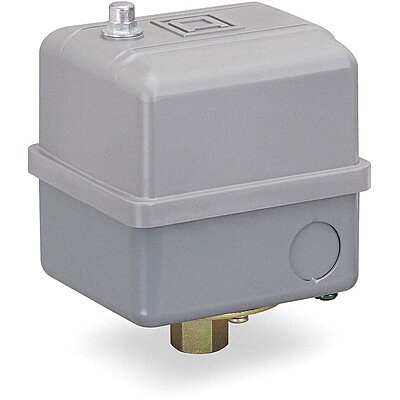

Square D Air Compressor and Water Pump Pressure Switch; Range: 40 to 200 psi, Port Type: (1) Port, 1/4" FNPS
Hover over image to magnify
#911424-1 | Pkg Qty: 1
$177.00 pkg | $177.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 575 V
Manual Switch Action
None
Action
Standard
Mfr. Part Number
9013GHG2J57X
Actuation Type
Diaphragm
NEMA Rating
1
Amperage
10 A
Number of Ports
1
Brand
SQUARE D
Package Quantity
1
Burst Pressure
300 psi
Phase
Single/Three
Contact Form
DPST
Port Type
1-Port 1/4 in. FNPS
Contact Type
DPST
Pressure Range
40 to 200
DC Contact Rating
1 HP @ 115 VDC, 1 HP @ 230 VDC
Pressure Switch Action
Standard
Differential
20 to 40 PSI
Pressure Switch Application
Air Compressor and Water Pump
Differential Pressure
20 to 40
Pressure Switch Differential
20 to 40 PSI
Enclosure
NEMA 1
Pressure Switch Electrical Contact Form
DPST
Factory On/Off Setting
120/150 psi
Pressure Switch Factory On/Off Setting
120/150 PSI
HP @ 1 Phase - 120 V
2
Pressure Switch Port Type
(1) Port, 1/4 in. FNPS
HP @ 1 Phase - 230 V
3
Pressure Switch Range
40 to 200 psi
HP @ 1 Phase - 240 V
3
Pressure Switch Unloader
1/4 in. Compression
HP @ 3 Phase - 230 V
5
Range
40 to 200 PSI
HP @ 3 Phase - 240 V
5
Series
9013Ghg
HP @ 3 Phase - 460 V
5
Shipping Weight
2 lb.
HP @ 3 Phase - 480 V
5
Temperature Range
-22 deg. F to 257 deg. F
IP Rating
54
Type
Air Compressor and Water Pump
Item
Pressure Switch
Unloader
1/4 in. Compression
General
Application
Air Compressor and Water Pump
HP @ 3 Phase - 460V
5
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 480V
5 hp
HP @ 1 Phase - 230V
3
Includes
2-Way Pressure Release Valve
HP @ 1 Phase - 240V
3 hp
Special Features
Nitrile (Buna-N) Diaphragm
HP @ 3 Phase - 230V
5
Standards
UL 508, NEC Article 430-84, ANSI /NSF Standard 61, FDA 21CFR.2600, CSA Certified
HP @ 3 Phase - 240V
5 hp
Product Description
This pressure switch is designed for the control of electrically driven water pumps and air compressors. It features a high electrical rating for the direct control of motors in pump and compressor applications.
Documents
SQUARE D Pressure Switches Class 9013 Type G Series C Instructions
SQUARE D Preventive Maintenance and Troubleshooting Class 9013F 9013G
SQUARE D Pressure Switch Brochure
SQUARE D Class 9013 Pressure Switch Catalog
SQUARE D Pressure Switch End of Life Instructions
SQUARE D Water Pump Pressure Switch Product Environmental Profile
Item Barcode
Pressure Switch, 120-150PSI
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2FH25 | PRESSURE SWI TCH, 120-150 |
 | UNSPSC CODES | 39122210 | |
 | VMRS (ATA) CODES | 053-008-006 |
