BUSSMANN

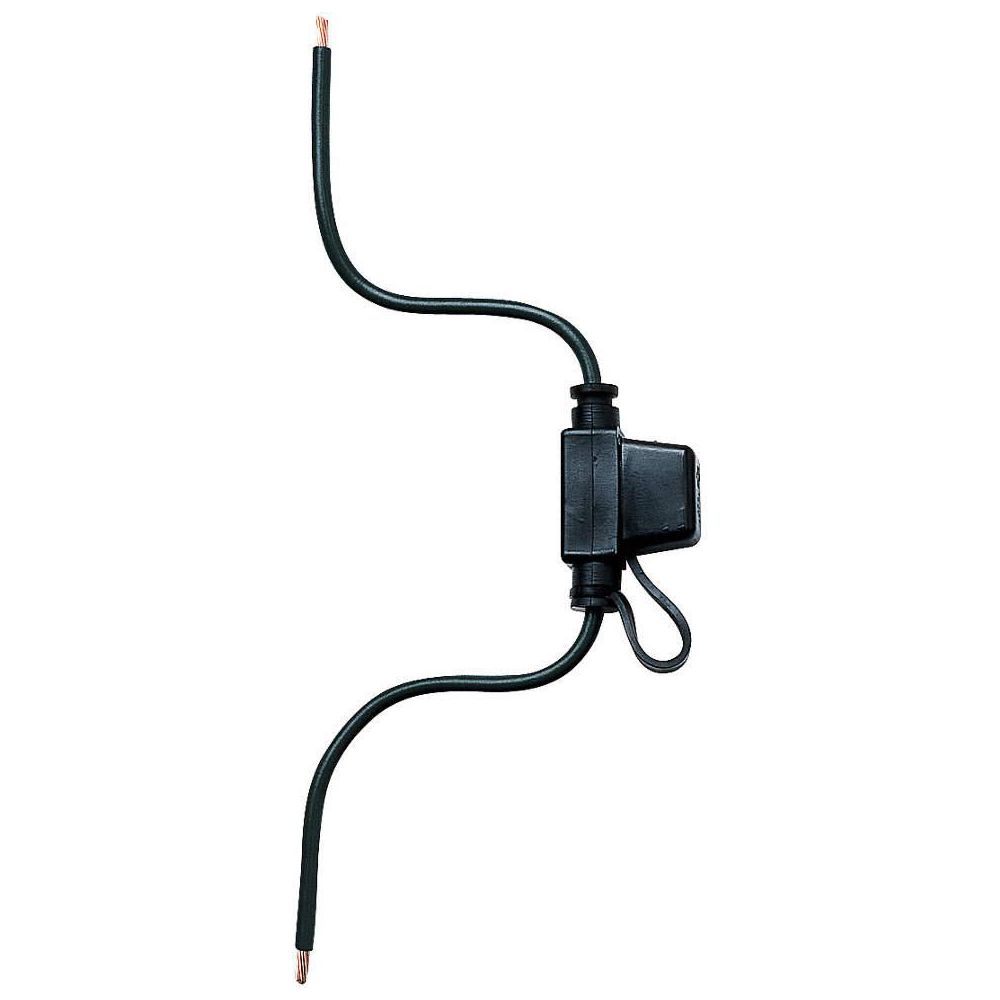

Bussmann In-Line Fuse Holder: 1 Poles, 0 to 20 A, 32V DC, Wire Leads, Nonindicating, Covered, 297, AF2, ATM

Hover over image to magnify
Fuse Holder, 32V/20A, Blk
Fuse Holder, 32V/20A, Blk

#911402-8 | Pkg Qty: 1

$8.97 pkg | $8.97 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
Not Rated
Fuse Size Length
0.64
Amp Range of Fuse Block or Holder
1 to 20A
Fuse Type
Automotive
Amperage Range
1-20 A
Fuse UL Class
Not Class Rated
Amps AC
20
Height
0.59 in.
Blown Fuse Indicator
No
Indicating / Nonindicating
Nonindicating
Body Height
0.59 in.
Item
Fuse Holder
Body Length
1.56 in.
Length
1.56 in.
Body Material
Rubber
Maximum Amps
20
Body Width
0.41 in.
Maximum Voltage
32 V
Brand
BUSSMANN
Mfr. Part Number
HHL
Color Family
Black
Mounting Style
Inline
Connector Type
Lead Wire
Number of Poles
1
DC Voltage Rating
32 VDC
Pack Quantity
1
Depth
0.59 in.
Series
Hhl
For Fuse Series
ATM
Shipping Weight
.04 lb.
For Fuse Size
41/64 in. L x 7/16 in. W x 5/32 in. D
Type
In-Line
Fuse Block Design
Not Applicable
Voltage Rating
32 VDC
Fuse Block/Fuse Holder Type
Fuse Holder
Width
0.41 in.
Fuse Block/Holder AC Voltage Rating
Not Rated
Wire Gauge
16 AWG
Fuse Block/Holder DC Voltage Rating
32 VDC
Wire Length
4 in.
Fuse Dimensions
10-29/32 in.L  16-19/64 in.H  3-39/64 in.W
Wire Size
16 AWG
Fuse Length
0.64 in.
General
Amp Range
0 to 20 A
Fuse Block Style
Nonrejection
Compatible Fuse Series
297, AF2, ATM
Fuse Block or Fuse Holder Type
Fuse Holder
Features
Cover
Fuse Block or Holder DC Voltage Rating
32VDC
Fits Fuse Type
Automotive
Standards
RoHS 2002/95/EC
For Use With
ATM Blade-Type Fuses
Visual Indication
Nonindicating

Product Description

These in-line fuse holders are compatible with automotive blade fuses commonly used for overcurrent protection of vehicle wiring and electrical systems. The blade-style contacts of automotive blade fuses plug into these holders for a secure connection. They're typically used to hold fuses in cars, trucks, RVs, and DC-powered equipment.

In-line fuse holders are wire-mounted holders that connect anywhere along a circuit to protect specific lines. They allow these lines to be isolated in the event of a fault so that the rest of the wiring system won't be affected. They have a receptacle that encloses a fuse and pigtail wires or terminals that extend from each end of the receptacle for connecting to a circuit. These fuse holders are commonly used on automotive wiring and other applications where space is limited or fuse box would be impractical.
