OMRON

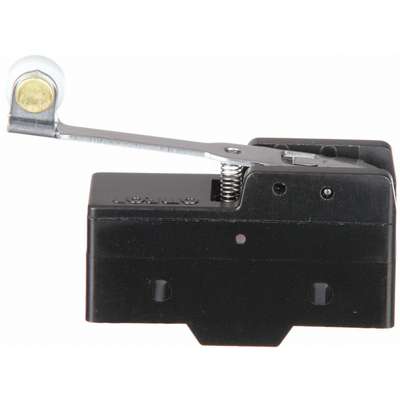

Omron 15A @ 480 V Hinge Roller, Lever Industrial Snap Action Switch; Series Z
Hover over image to magnify
#911355-4 | Pkg Qty: 1
$19.37 pkg | $19.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 480 V
Maximum Pretravel
0.157 in.
Actuator Length
1.91 in.
Mfr. Part Number
Z-15GW2-B7-K
Actuator Type
Hinge Roller, Lever
Mounting Dimension
1.03 in. Centers
Basic Actuator Type
Lever
Number of Circuits
1
Brand
OMRON
Operating Force
3.5 oz.
Contact Form
SPDT
Operating Temperature Range
-2 deg. C to 8 deg. C
Contact Type
SPDT
Over Travel
0.157 in.
Current Rating
15A
Package Quantity
1
DC Contact Rating
15 A @ 14 V
Release Force
0.79 oz.
Depth
0.69 in.
Series
Z
Differential Travel
0.040 in.
Shipping Weight
.05 lb.
Electrical Connection
Screw
Snap Action Switch Type
Industrial Snap Action Switch
Height
1.16 in.
Type
Z Series, Snap-action Switch
Housing Material
Plastic
Type of Actuator
Hinge Roller Lever
Item
Industrial Snap Action Switch
Voltage
480
Length
1.94 in.
Voltage Rating
480 VAC
Lever Actuator Length
1.91 in.
Width
1.94 in.
General
AC Contact Rating - Snap Action Switch
15 A @ 480 V
Height - Snap Action Switch
1.16 in
Actuator Type - Snap Action Switch
Hinge Roller, Lever
Lever Actuator Length - Snap Action Switch
1.91 in
Basic Actuator Type - Snap Action Switch
Lever
Mounting Dimension - Snap Action Switch
1.03 in Centers
Contact Form- Switches
SPDT
Number of Circuits - Snap Action Switch
1
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Operating Temp. Range
-25° to 80°C
Depth - Snap Action Switch
0.69 in
Width - Snap Action Switch
1.94 in
Electrical Connection - Snap Action Switch
Screw
Product Description
This snap switch features a hinge roller lever actuator and plastic housing.
Item Barcode
Switch, Snap Action, 15 Amp
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6X285 | SWITCH, SNAP ACTION, 15A |
 | UNSPSC CODES | 39122209 | |
 | VMRS (ATA) CODES | 053-007-002 |
