SQUARE D

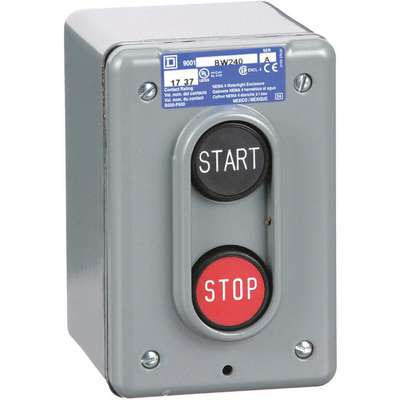

Square D Push Button Control Station, 1NO/1NC Contact Form, Number of Operators: 2
Hover over image to magnify
#911353-2 | Pkg Qty: 1
$288.90 pkg | $288.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Momentary/Momentary
Material of Construction
Cast Zinc
Brand
SQUARE D
Mechanical Interlock
No
Contact Form
1NO/1NC
Mfr. Part Number
9001BW240
Contact Rating
5 A @ 600 VAC/24 VDC
Mounting
Wall
Contact Type
1NO/1NC
NEMA Rating
4
Depth
4-1/4 in.
Number of Operators
2
Enclosure Material
Die Cast Zinc
Package Quantity
1
Height
3.6 in.
Product Size
30 mm
Hub
1/2 in. NPT
Shipping Weight
2.4 lb.
IP Rating
66
Size
30 mm
Item
Push Button Control Station
Type of Operator
Push Button/Push Button
Legend
Start/Stop
Voltage
600
Legend Markings
Start/Stop
Width
2.76 in.
Length
4-1/4 in.
General
Standards
CSA Certified, CE
Product Description
NEMA 1 and NEMA 4 (Indoor) Contact blocks rated 0.6A at 600VAC, 0.75A at 480VAC, 1.5A at 240VAC, 3.75A at 120VAC. Imperial 2XV series are also CSA Recognized, CE Certified, and NEMA B600-P600. Assembled Control Stations
- Metal NEMA enclosures 600VAC/DC max. Surface-mount stations for use with magnetic motor starters to control functions of electric motors. Not for direct starting or stopping of motors.
Item Barcode
Control Station, Nema 4
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2EK34 | CONTROL STATION,NEMA |
 | UNSPSC CODES | 39122216 | |
 | VMRS (ATA) CODES | 053-007-002 |
