DAYTON

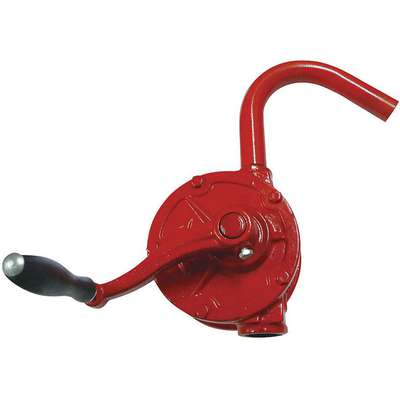

Hand Operated Drum Pump, Rotary, Hand Pump Only, For Container Type Bucket, Drum, Pail

Hover over image to magnify
Pump, Rotary, 10 Gpm
Pump, Rotary, 10 Gpm

#911324 | Pkg Qty: 1

$88.94 pkg | $88.94 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Action Type
Rotary
Maximum Viscosity
2000 SSU
Adapter Material
Cast Iron
Metered
No
Adapter Type
2" NPT Bung
Mfr. Part Number
4HA34
Brand
DAYTON
Outlet Size
M25 x 1.5
Discharge Tube Length
10-1/2"
Overall Length
11 in.
Discharge Tube Outlet ID Size
3/4"
Pack Quantity
1
Discharge Tube Outlet Outside Diameter
1"
Power Source
Hand Operated
Discharge Tubing Material
Steel
Pump Body Material
Cast Iron
For Use On
15, 30, 55 gal. Drums
RPM
135
GPM
10 GPM @ 135 RPM
Seal
Buna
Hand Operated Pump Action Type
Hand Operated Rotary Pumps
Seal Material
Buna-N
Housing Material
Cast Iron
Self-Priming
Yes
Inlet Size
1" FNPT
Shipping Weight
8.43 lb.
Item
Hand Operated Drum Pump
Type
Rotary Action
Maximum GPM for Oil
10
Wetted Materials
Buna-N, Cast Iron, Steel
Maximum Liquid Temperature
140°F
General
Application
Lubricating Oils, Fuel Oils, Antifreeze
Housing Material - Pumps
Cast Iron
Compatible Chemicals
Automatic Transmission Fluid, Diesel Fuel, Ethyl (Ethanol), Gasoline, Kerosene, Sodium Hypochlorite/Bleach (to 20%)
Includes
Pump Only, See Optional Accessories for Discharge and Suction Tubes
Discharge Tube Outlet ID
3/4 in
Includes Bung Adapter
Yes
Discharge Tube Outlet OD
1 in
Max. Flow Rate
10 gpm @ 120 strokes
Features
Self-Priming
Max. Fluid Temp.
140 Degrees F
For Container Size
5 gal, 15 gal, 30 gal, 55 gal
Not Recommended Chemicals
DEF, Deionized Water, Fresh Water, Salt Water
For Container Type
Bucket, Drum, Pail
Pump Package Type
Hand Pump Only
For Media Type
Automatic Transmission Fluid, Bleach, Diesel Fuel, Ethanol, Gasoline, Kerosene
Special Features
Not For Use With Gasoline
For Use With
Antifreeze, Fuel Oils, Lubricating Oils

Product Description

Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
