HI-TECH DURAVENT

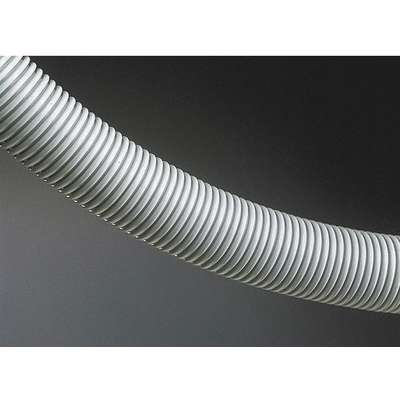

Industrial Ducting Hose: 1 1/2 in Hose Inside Dia., 50 ft Hose Lg, 36 psi, 1.1 in Bend Radius

Hover over image to magnify
Ducting Hose, 1-1/2 Id
Ducting Hose, 1-1/2 Id

#911319-6 | Pkg Qty: 1

$170.30 pkg | $170.30 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
1.1 in.
Mfr. Part Number
0354-0150-0001
Brand
HI-TECH DURAVENT
Package Quantity
1
Color Family
Gray
Reinforcement Material
Fiber
Hose Inside Diameter
1-1/2 in.
Shipping Weight
13.35 lb.
Hose Length
50 ft.
Temperature Range
-20 deg. F to 150 deg. F
Item
Industrial Duct Hose
Tube Material
PVC
Maximum Working Pressure @ 70 F
36 PSI
Vacuum Rating
26" Hg
General
Chips and Shavings
X
Hose Reinforcement Type
Helix
Compatible Chemicals
Dust, Fumes, Liquids, Water
Hose Tube Material
PVC
Cutting Oil
X
Liquids
R
Dust
R
Max. Working Pressure @ 70 F
36 psi
For Media Type
Dust, Fumes, Liquids, Water
Not Recommended Chemicals
Chips & Shavings, Cutting Oil
Fumes
R
Temp. Range
-20 Degrees to 150 Degrees F
Hose Reinforcement Material
Fiber
Water
R

Product Description

These high-strength fiber-reinforced PVC duct hoses resist moisture, UV rays, ozone, and oils. They are suitable for use in industrial and commercial vacuum cleaner, industrial machinery ventilation and cooling, bilge pumps and bilge ventilation, driver ventilation, PAPR, and pellet transfer applications. They can also be used as conduit to cover and protect cables. These hoses are used in the marine, municipal, plastics-processing, and transportation industries.

These duct hoses are primarily used to blow, vacuum, or exhaust dust. Some types of this duct hose may also be used for moving other materials, such as fumes. The smaller a duct hose's bend radius, the more flexible the hose is. Duct hoses for dust are sometimes known as dust-collection hoses or dust hose.
