IDEAL

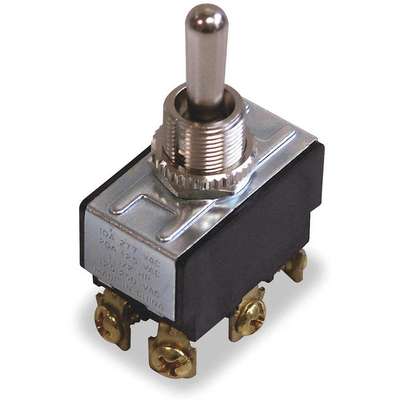

Ideal Toggle Switch, Number of Connections: 6, Switch Function: Momentary On/Off/Momentary On
Hover over image to magnify
#911307-3 | Pkg Qty: 1
$14.95 pkg | $14.95 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
20 A @ 125 VAC, 10 A @ 250 VAC
Number of Connections
6
Actuator Color
Silver
Operating Temperature Range
3 deg. F to 185 deg. F
Actuator Length
0.75 in.
Recommended Use
Power Tool and Motor Control Switch Applications
Actuator Style
Bat
Shipping Weight
.1 lb.
Brand
IDEAL
Stem Color
Silver
Contact Form
DPDT
Stem Diameter
15/32-32 NS-2A
Contact Rating @ 125 V (Amps)
20
Stem Diameter/Thread Size
15/32-32 NS-2A
Contact Rating @ 250 V (Amps)
10
Stem Length
1/2 in.
Horsepower
2002-01-01
Style
Bat
Item
Toggle Switch
Switch Function
Momentary On/Off/Momentary On
Mfr. Part Number
774000
Terminals
Screw
Mounting Hole
0.50 in. dia.
Type
Momentary
Mounting Type
Panel
General
HP
1 1/2 hp
Standards
UL Recognized/CSA
Operating Temp. Range
32° to 185°F
Stem Dia. and Thread Size
15/32-32 NS-2A
Special Features
Factory Tested 100,00 Cycles to 21A @ 14.8VDC
Product Description
The IDEAL® toggle switch is great for power tool and motor control switch applications. Heavy-duty toggle features rugged, long-wearing solid brass/nickel-plated bushings.
Item Barcode
Toggle Switch, HD, Dpdt, On/Of
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1XWT1 | TOGGLE SWITC H, HD,DPDT |
 | UNSPSC CODES | 39122211 | |
 | VMRS (ATA) CODES | 002-029-006 |
