SPEEDAIRE

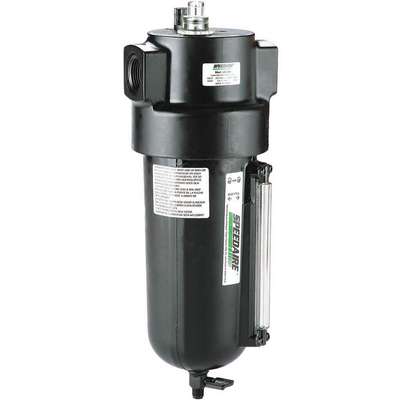

1-1/2" NPT Air Line Lubricator, 275 cfm Max. Flow, 250 psi Max. Pressure
Hover over image to magnify
#911301-4 | Pkg Qty: 1
$174.29 pkg | $174.29 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment Type
Screwdriver
Maximum Temperature
175 deg. F
Air Consumption
scfm
Maximum Temperature (Deg. F)
175
Body Material
Aluminum
Mfr. Part Number
4ZL62
Bowl Material
Metal with Sight Glass
NPT
1<StartNumerator/><BeforeLastDigitInNumerator/>1<FractionBar/><StartDenominator/>2<EndFraction/> in.
Bowl Size
32 oz.
Overall Height
12.43 in.
Brand
SPEEDAIRE
Overall Length
4.32 in.
Dome
Red 360 Sight/feed, Where 10 to 15% of the Oil Drops Visible are Delivered
Overall Width
4-1/2 in.
Drain Included
Yes
Package Quantity
1
Item
Air Line Lubricator
Pipe Size
1-1/2 in. NPT
Maximum Flow
275 cfm
Series
Heavy Duty
Maximum Flow (CFM)
275 CFM
Shipping Weight
4.4 lb.
Maximum Pressure
250 psi
Width
4-1/2 in.
General
Adjustment Mechanism
Screwdriver
Lubricator Bowl Capacity
32 oz
Air Flow Direction
Left to Right
Lubricator Bowl Guard Material
Aluminum
Air Inlet Gender
Female
Lubricator Bowl Material
Metal with Sight Glass
Air Inlet Type
NPT
Lubricator Type
Micro Mist
Air Outlet Gender
Female
Max. Pipe Run
50 ft
Air Outlet Size
1 1/2 in
Modular Connection
No Modular Connection
Air Outlet Type
NPT
Oil Feed Type
Micromist
Dome Material
Transparent Nylon
Recommended Lubricant
ISO VG 32
Drain Part Compatibility
114X39
Sensor
Integral Flow, Provides Proportional Control
For Fluid Type
Compressed Air
Sight Dome Included
Yes
For Maximum Pipe Run
50 ft
Sight Gauge Included
Yes
For Substance Type
Air
System Location
Main Line
Includes
(1) Oil Drop Controller
Product Description
Lubricator maintains a constant oil-to-air density over a wide range of flow. Provides lubrication for multiple pneumatic tools/devices. An integral flow sensor provides proportional control. Comes equipped with a red 360° sight/feed dome. For the Max. Flow, the CFM is based on 90 psig inlet and 5 psig pressure drop.
- Modular connector allows easy removal and swap out
- Up to 50-ft. pipe runs
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Lubricator 1 1/2 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4ZL62 | LUBRICATOR 1 1/2 IN |
 | UNSPSC CODES | 27131604 | |
 | VMRS (ATA) CODES | 002-029-006 |
