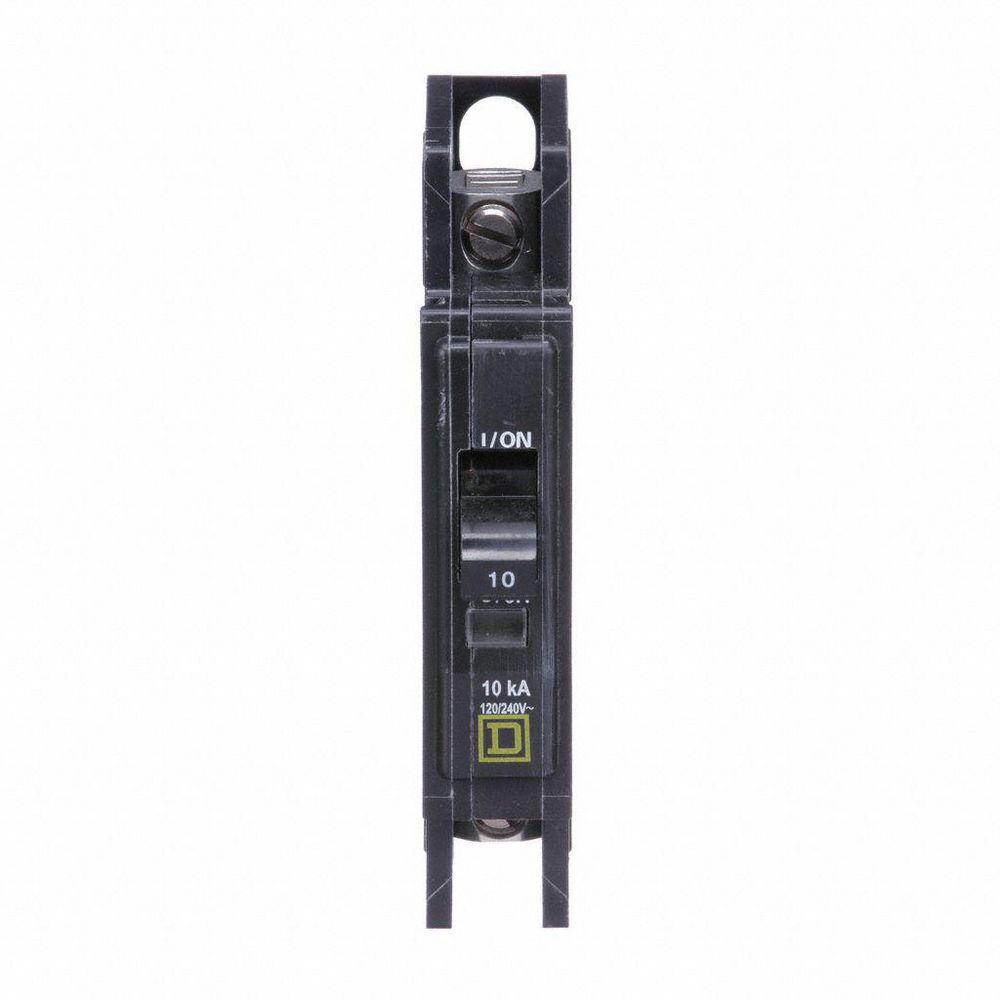

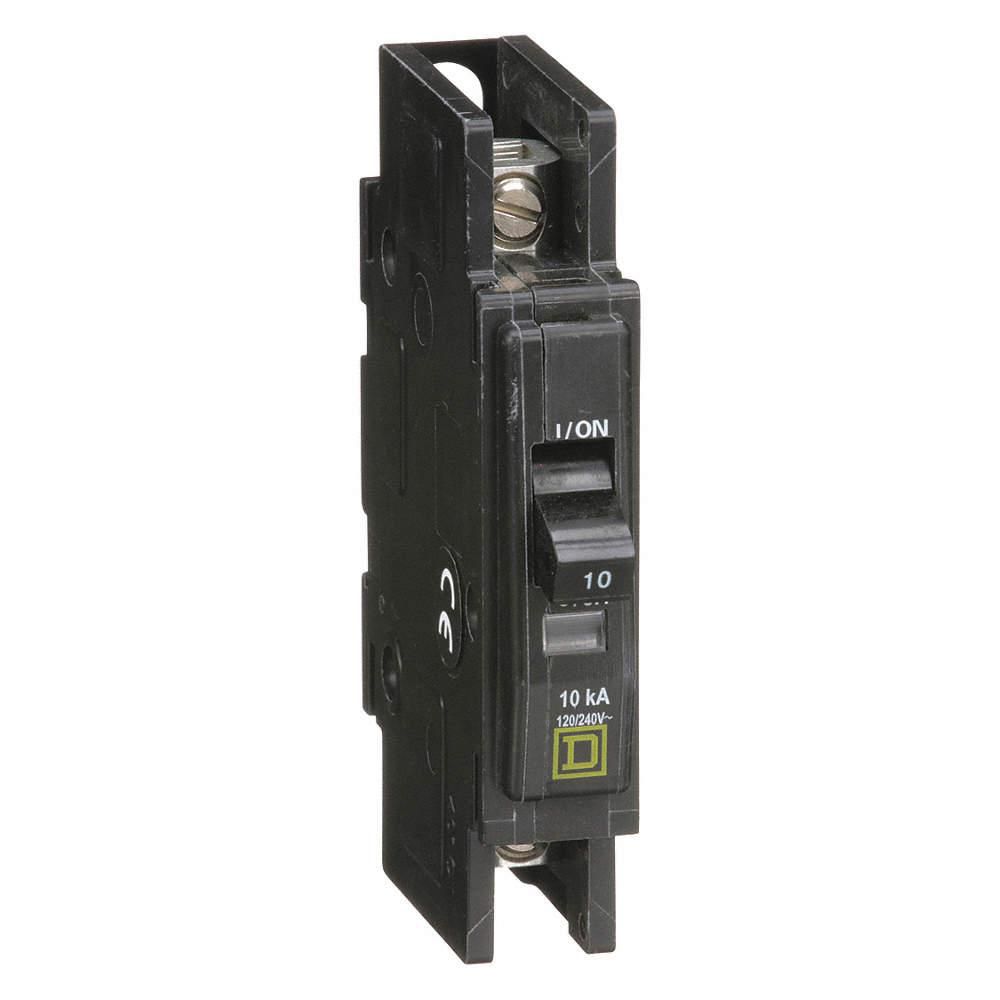

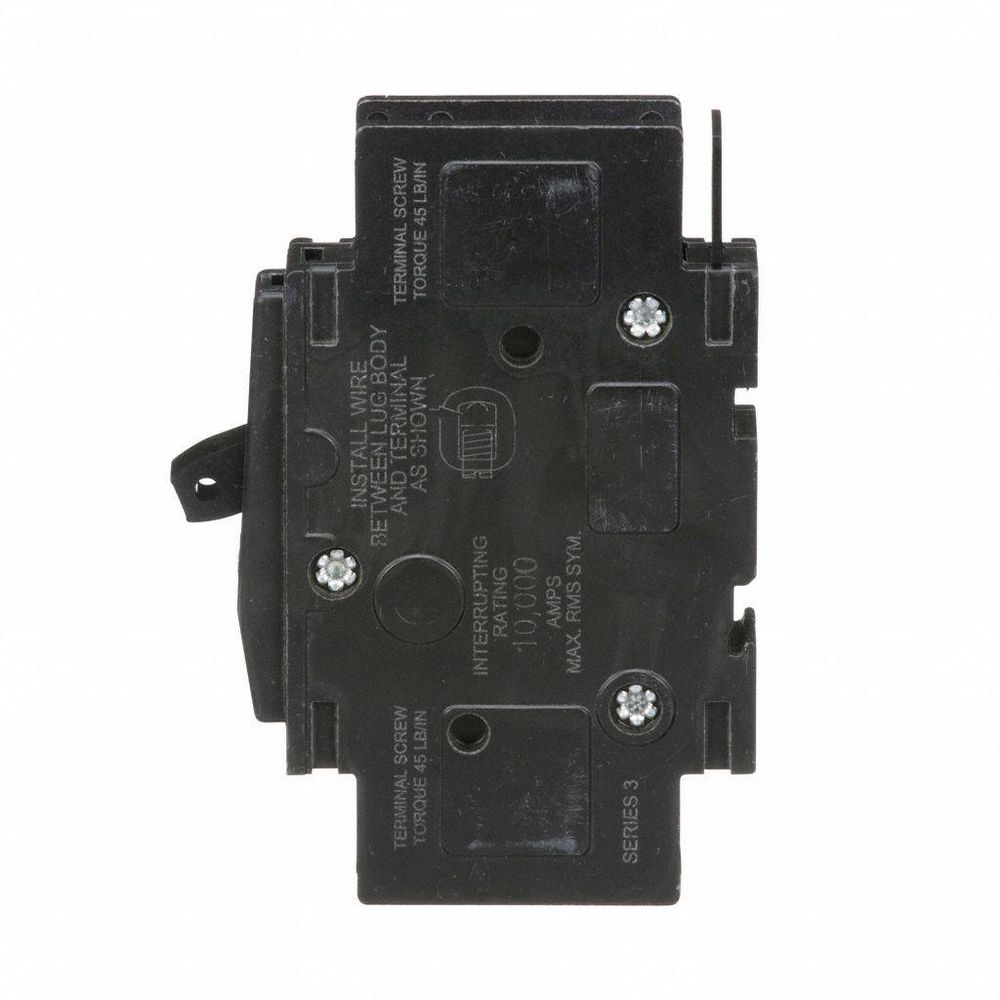

Square D Unit Mount Circuit Breaker, QOU, Number of Poles 1, 10 Amps, 120/240VAC, Standard

Name: Square D Unit Mount Circuit Breaker, QOU, Number of Poles 1, 10 Amps, 120/240VAC, Standard
Brand: SQUARE D
SKU: 9112998
Price: 55.26 USD
Availability: InStock

Hover over image to magnify

#911299-8 | Pkg Qty: 1

$55.26 pkg | $55.26 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

AC Voltage Rating

120/240VAC

Maximum Air Rating

10kA at 120/240VAC

Air @ 120 VAC

10kA

Maximum DC Voltage

Air @ 240 VAC

10kA

Maximum Wire Size

2 AWG

Air @ 48 VDC

5kA

Mfr. Part Number

QOU110

Amperage

10 A

Minimum Wire Size

14 AWG

Amps

10 A

Number of Poles

Brand

SQUARE D

Package Quantity

Circuit Breaker Type

Standard

Phase

Single

DC Voltage Rating

48VDC

Series

QOU

Depth

2.95 in.

Shipping Weight

.35 lb.

Frame Size

100A/QOU

Terminal Connection

Slotted Box Lug (Reversible Line and Load)

High Amp Trip Setting

13-1/2

Type

Free Standing

Instantaneous Trip

Fixed

Voltage

120 - 240VAC

Item

Miniature Circuit Breaker

Width

3/4 in.

Length

4.05 in.

General

AIR @ 120VAC

10kA

Circuit Breaker Mounting Style

Surface/DIN Rail

AIR @ 240VAC

10kA

Compatible Panelboard/Load Center Series

AIR @ 48VDC

5kA

For Use With

Air Conditioning and Refrigeration Equipment, Heating

Circuit Breaker Actuator

Toggle

Product Description

These QOU series miniature circuit breakers can be surface-, flush-, or DIN rail-mounted in panelboards and load centers to free up space wherever it's needed. They interrupt currents when overloads are detected in the circuit and can switch on both AC and DC electrical systems.
