MILLER ELECTRIC

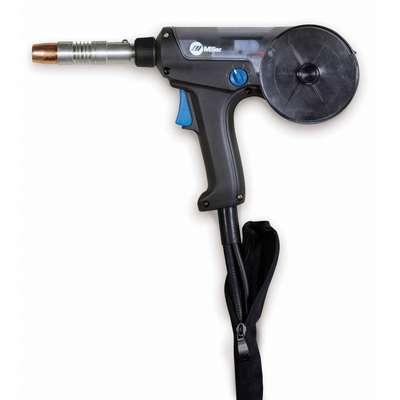

Miller Electric Spool Gun: Spoolmate 200, 160 A, 0.035 in, 20 ft Cable Lg, 300497

Hover over image to magnify
Gun,Spool,200 Series,300497
PI_Asset_968816
Gun,Spool,200 Series,300497
PI_Asset_968816
Miller Electric Spool Gun: Spoolmate 200, 160 A, 0.035 in, 20 ft Cable Lg, 300497 Video

#911298-6 | Pkg Qty: 1

$2,289.16 pkg | $2,289.16 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
160A
Mfr. Part Number
300497
Brand
MILLER ELECTRIC
Package Quantity
1
Cable Length
20 ft.
Series
Spoolmate 200
Duty Cycle
160A at 60%
Shipping Weight
11.8 lb.
Handle Type
Pistol Grip
Type
Spool Gun
Item
Spool Gun
max._wire_dia_spec_s
0.035 in.
General
Application
MIG
Includes
20 ft Cable, Extra Contact Tips
Cable Length (Ft.)
20 ft
Liner Series
247351
Cable Length (Meters)
6 m
MIG Gun Type
Spool Gun
Compatible with Model
Millermatic 210, Millermatic 212, Millermatic 212 Auto-Set, Millermatic 251, Millermatic 252
Maximum Amperage Range
150 A — 300 A
Compatible with Series
Spoolmate
Maximum Wire Feed Speed
875 in/min
Duty Cycle (%)
60%
Nozzle Series
199386
Features
20 ft Direct Connect Cable, Wire Feed Speed Adjustment, Easy Access To Drive Assembly And Drive Rolls, Two-Stage Trigger With Built-In Gas Valve, Toolless Barrel Removal, Three Ooptional Gun Barrels
Spool Capacity
4 in
For Gas Type
Ar (Argon)
Spool Included
Yes
For Rear Connection Type
Miller-Compatible
Trigger Type
Two Stage Trigger
For Use With
• Millermatic® 212 Auto-Set • Millermatic® 252
Wire Feed Type
Pull
For Wire Type
Aluminum
Wire Size (In.)
.030 –.035 (0.8– 0.9 mm) Aluminum, .023 –.035 (0.6 –0.9 mm) Mild and Stainless Steel
Gas Diffuser Number
199390

Product Description

The Spoolmate 200 features a 20-ft. direct connect cable, wire feed speed adjustment, easy-to-access drive assembly and drive rolls, a 2-stage trigger with built-in gas valve, toolless barrel removal, and 3 gun barrels.
