SCHNEIDER ELECTRIC

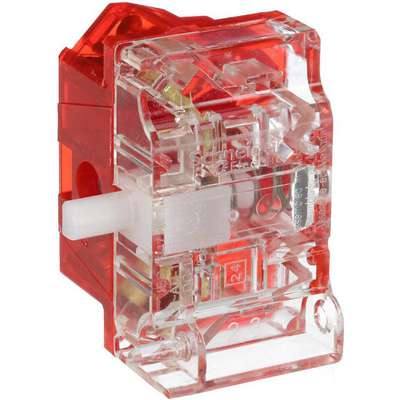

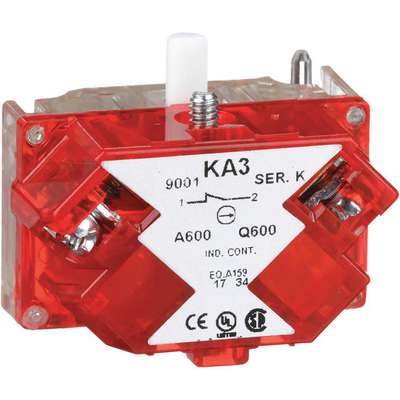

Schneider Electric Contact Block, 30mm, 1NC Contact Form, 10A @ 600VAC Contact Rating
Hover over image to magnify
#911114 | Pkg Qty: 1
$27.22 pkg | $27.22 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Momentary
Mfr. Part Number
9001KA3
Amperage
10 AC/2.5 DC
NEMA Contact Rating Designation
A600/P600
Application
Finger Safe Operator
Package Quantity
1
Brand
SCHNEIDER ELECTRIC
Product Size
30 mm
Color Family
Clear / Red
Shipping Weight
.05 lb.
Contact Form
1NC
Size
30 mm
Contact Rating
10 A @ 600 VAC
Terminal Connection
Screw/Clamp
Contact Type
1NC
Type
Standard Direct Acting
For Use With
Schneider 9001K Series 30mm Operators
Type of Operator
Finger Proof Shroud
Item
Contact Block
Wire Range
#12-24
General
Standards
UL, CSA, CE
Product Description
30mm Contact Blocks
- NEMA rated A600-P600 #12 to 24 AWG wire range allows use of more common small wire sizes
- Terminals are at 20° angle to eliminate interference with other contact blocks mounted in tandem. Feature double-break fine silver contacts with wiping action.
Expertly Selected Product Pairings
Item Barcode
Contact Block, 30Mn
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5B535 | CONTACT BLOC K, 30Mm |
 | UNSPSC CODES | 39122216 | |
 | VMRS (ATA) CODES | 034-004-105 | CONTACT BLOCK |
