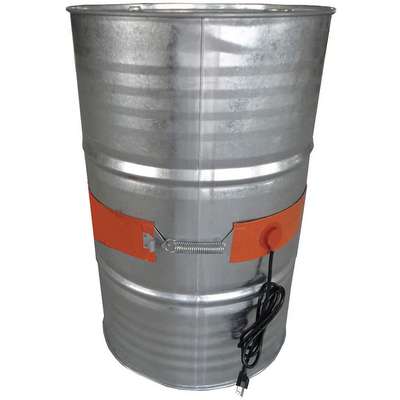

Drum Heater, Electric, 1,000 W Watts, 55 gal, 115 V Voltage, 8.7 A Amps AC, 66 3/4" Length
Hover over image to magnify
#910924-7 | Pkg Qty: 1
$129.34 pkg | $129.34 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
8.7
Mfr. Part Number
3CDA1
Brand
APPROVED SUPPLIER
Package Quantity
1
Diameter
22-1/2 in.
Shipping Weight
2 lb.
Drum Capacity
55 gal.
Voltage
115
Item
Drum Heater
Watt Density
5.70W/sq. in.
Length
66-3/4 in.
Watts
1000 W
General
Current Rating
8.7 A
Operating Temperature - Minimum
338 °F
Drum Dia.
22 1/2 in
Operating Voltage
115V AC
Drum Diameter - Maximum
22 1/2 in
Screens
Built in Electrically Grounded, Covered with Fiberglass Reinforced Vulcanized Silicone Rubber Insulation
For Container Capacity
55 gal
Stem Rotation
N/A
For Use With
Metal Drum
Temperature Control Range
338 °F to 356 °F
Includes
No Thermostat
Thermostat Temperature -Maximum
356 °F
Operating Temperature - Maximum
356 °F
Thermostat Temperature -Minimum
338 °F
Product Description
For Vertical Metal Wraparound heaters connect with a spring-and-clip device. Control range: 50° to 400°F. Temperature control stem rotates 310°. All have adjustable thermostats, except for No. 3CDA1. Drum Heaters
- Dielectric tested at 1250V for 115V drum heaters and at 1500V for 230V Mount below drum contents for freeze protection, viscosity control, melting, or keeping elevated temperatures. Nickel alloy heating element and electrically grounded, insulated screen. 115V units have 6-ft. cord set with 3-prong molded plug; 230V have a pigtail end. UL Recognized and CSA Certified. Note: Actual temperature of the contents is affected by thermostat setting, heater wattage, type of drum contents, ambient temperature, and other system characteristics. Multiple heaters may be required for some applications.
