APOLLO

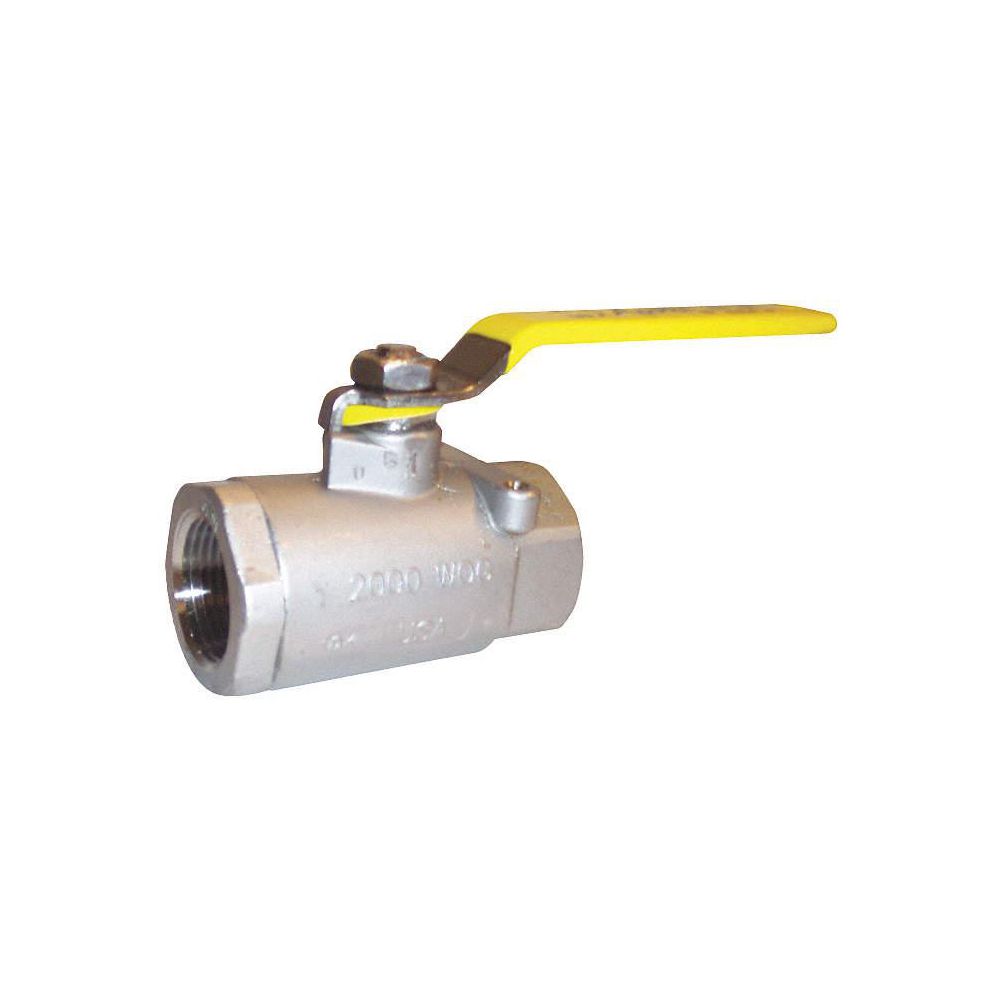

316 Stainless Steel FNPT x FNPT Ball Valve, Locking Lever, 1/2" Pipe Size

Hover over image to magnify
Ball Valve 2 Pc. 1/2"NPT
Ball Valve 2 Pc. 1/2"NPT
Double tap image to magnify
Ball Valve 2 Pc. 1/2"NPT
Ball Valve 2 Pc. 1/2"NPT

#910865-9Pkg Qty: 1

$87.75 pkg | $87.75 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Ball Valve Group
Manual
Mfr. Part Number
7610327A
Ball Valve Item
Ball Valve
Overall Length
4.99 in.
Body Material
Stainless Steel
Package Quantity
1
Body Style
Inline
Port
Standard
Brand
APOLLO
Seal Material
PTFE
Connection Type
FNPT x FNPT
Seat Material
RPTFE
For Pipe Size
1/2 in.
Shipping Weight
.63 lb.
General Connection Type
Female NPT
Stem Material
316 Stainless Steel
Handle Material
304 Stainless Steel
Stem Type
Blowout Proof
Handle Type
Locking Lever
Temperature Range (Deg. F)
-50 to 450 deg. F
Item
Ball Valve
Valve Style
2-Piece
Maximum Pressure
2000 psi CWP
General
Ball Valve Product Group
Manual
Standards
MSS-SP-110
Body Seal Material
PTFE
Valve Basic Body Material
Stainless Steel
Features
SS Latch Lock
Valve Structure
2-Piece
Max. Steam Pressure
150 psi WSP

Product Description

This Apollo® ball valve features investment-cast stainless steel components for the most demanding industrial applications. Integral mounting pad with drilled and tapped holes, and blowoutproof stem with adjustable packing gland. Vacuum service to 29" Hg. For use with water, oil, gas, and low-pressure steam in most corrosive industrial environments.
