ARO

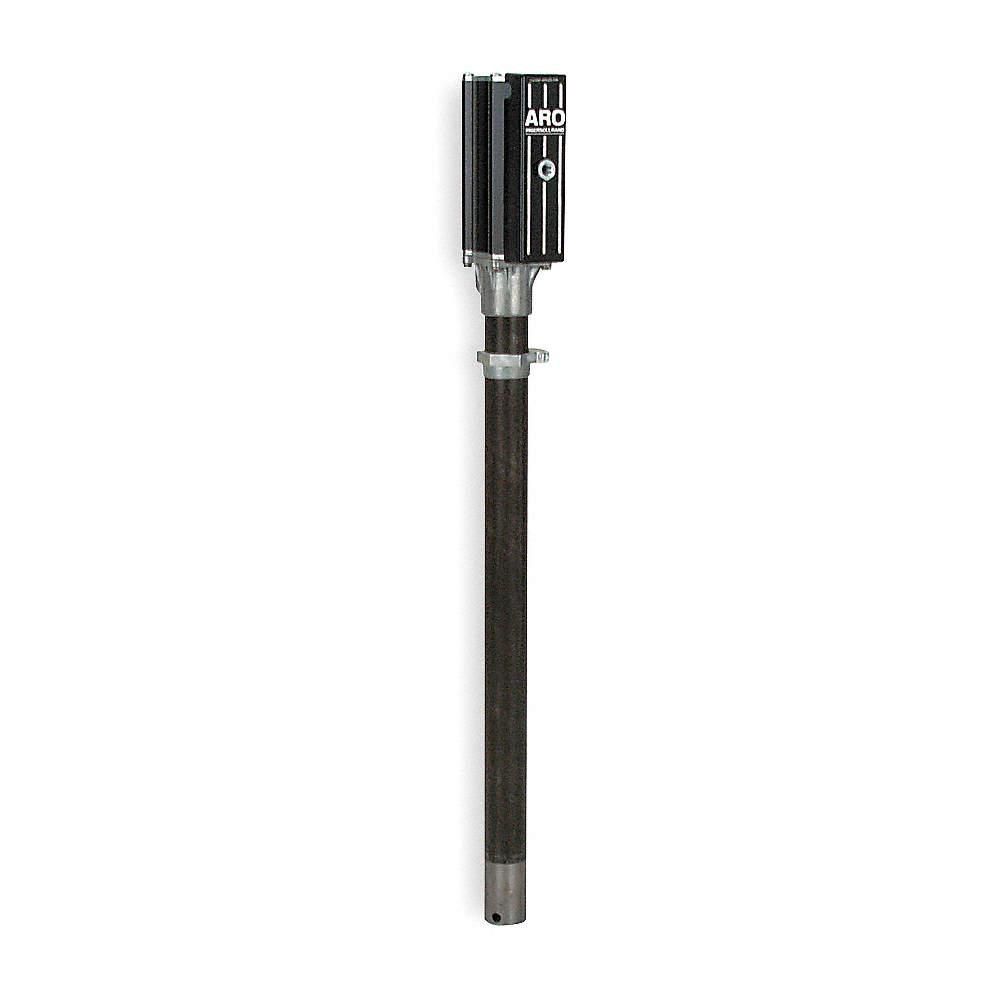

Air Operated Drum Pump, Basic Pump without Discharge Hose, For Container Type Drum

Hover over image to magnify
Pump,Oil,16 G,5:1
Pump,Oil,16 G,5:1
Double tap image to magnify
Pump,Oil,16 G,5:1
Pump,Oil,16 G,5:1

#910636-7Pkg Qty: 1

$1,208.70 pkg | $1,208.70 ea

Out of Stock

Shipping to 43085
Backordered, expected to arrive by end of May, 2025.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>Stall-free, ice-free air motor design. Constructed with 50% fewer parts than most comparable pumps.</p>

Stall-free, ice-free air motor design. Constructed with 50% fewer parts than most comparable pumps.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Air Inlet
1/4 in.
Maximum Output
6 gpm
Air Inlet Size
1/4 in. FNPT
Mfr. Part Number
LM2305A-31-B
Air Motor Size
3 in.
Outlet Pressure Maximum
750
Brand
ARO
Package Quantity
1
Container Size
16 gal.
Power Source
Air
Fluid In/Out
1-1/2-1/2
Pump Ratio
5:1
Fluid Inlet Thread
1-1/2 FNPT
Shipping Weight
29 lb.
Fluid Outlet Thread
1/2 FNPT
Type
Heavy Duty High Flow
Item
Oil Pump
Working Flow Maximum
6
Maximum Air Inlet PSI
150
General
Compatible Chemicals
Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Includes Suction Tube
Yes
For Container Size
16 gal
Max. Outlet Pressure
750 psi
For Container Type
Drum
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
For Media Type
Hydraulic Oil, Motor Oil
Pump Package Type
Basic Pump without Discharge Hose
Includes
2 in Bung Adapter

Product Description

Stall-free, ice-free air motor design. Constructed with 50% fewer parts than most comparable pumps.
