FENNER DRIVES

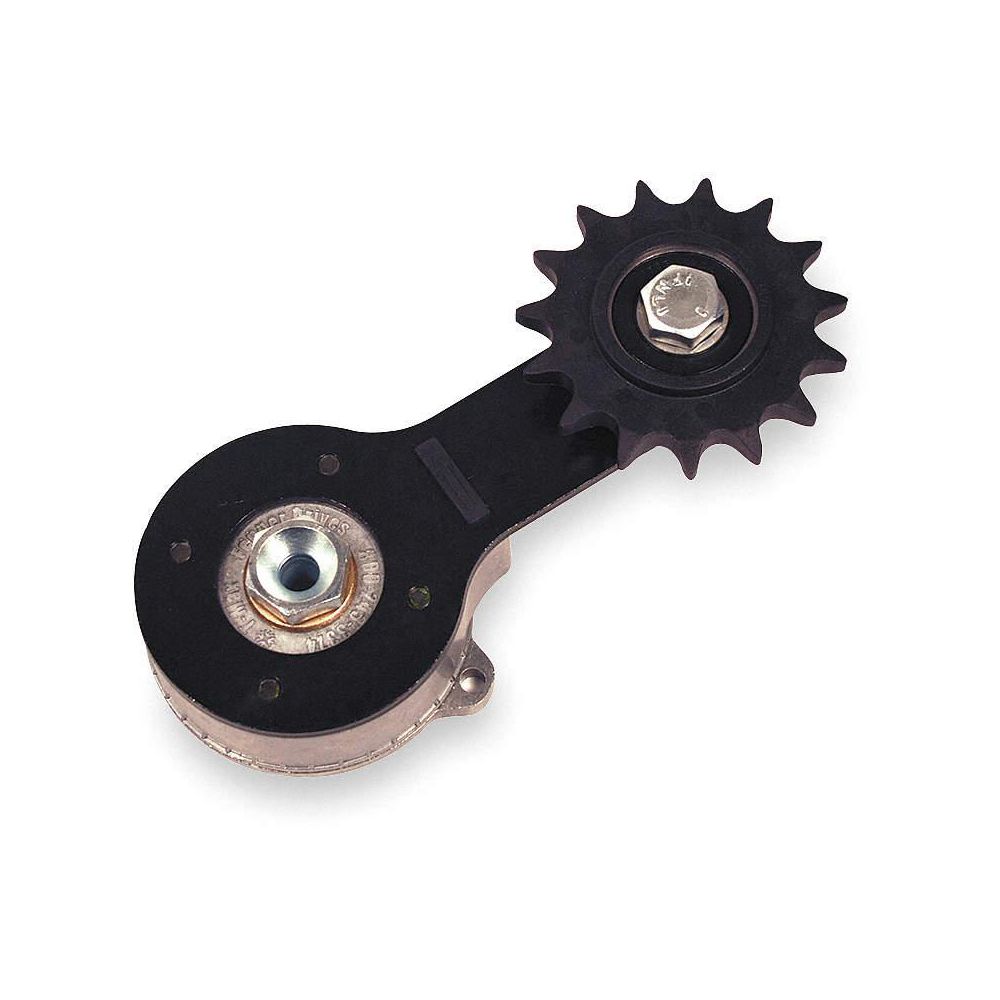

Self-adjusting tensioner: ANSI Chain Size 60, 3.52" Idler Outside Dia., 1 1
Hover over image to magnify
#910434-7 | Pkg Qty: 1
$221.39 pkg | $221.39 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Chain Size
60
Dimension T
1.37 in.
Application
Chain Drives
Function
Self-Adjusting Tensioner Eliminates Need For Regular Manual Retensioing
Brand
FENNER DRIVES
Insert
Alloy Steel Torsional Wrapped Spring Which May Be Reversed To Allow Bi-directional Use.
Dimension A
1.87 in.
Item
Self-Adjusting Tensioner
Dimension B
0.26 in.
Mfr. Part Number
FS0568
Dimension C
0.84 in.
Mounting Hole
2/5 in.
Dimension D
3.34 in.
Package Quantity
1
Dimension E
7.94 in.
Shipping Weight
2.15 lb.
Dimension G
0.4 in.
General
Arm Length to Hole Center
4.5 in
Minimum Tension Force
0 lbf
Arm Material
Aluminum
Mount Hole Diameter
33/64 in
Arm Rotation
70 Degrees
Overall Depth
1.87 in
Base Diameter
3.34 in
Sprocket Outside Diameter
3.52 in
For Chain Number
60
Sprocket Pitch Diameter
3.14 in
Maximum Tension Force
42 lbf
Product Description
Self-adjusting tensioner, 60 ANSI Chain Size, Idler Outside Dia. 3.52 in, Mounting Hole2/5 in, Mounting Hole (Metric), Idler Bolt-, Temp. Range (F) 32 to 225, Force Range (Lbs.) 0 to 42, Normal 10 Deg. Force (Lb.), Hard 10 Degree Force (Lb.), -, Hard 20 Degree Force (Lb.), Normal 20 Deg. Force (Lb.), -, Hard 30 Degree Force (Lb.), Normal 30 Deg. Force (Lb.), -
Item Barcode
Self-Adjusting Tensioner,60 Ansi Chain
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2ZRU3 | SELF-ADJUSTI NG TENSIONER |
 | UNSPSC CODES | 26111503 | |
 | VMRS (ATA) CODES | 065-005-003 | SELF-ADJUSTI NG TENSIONER |
