PARKER

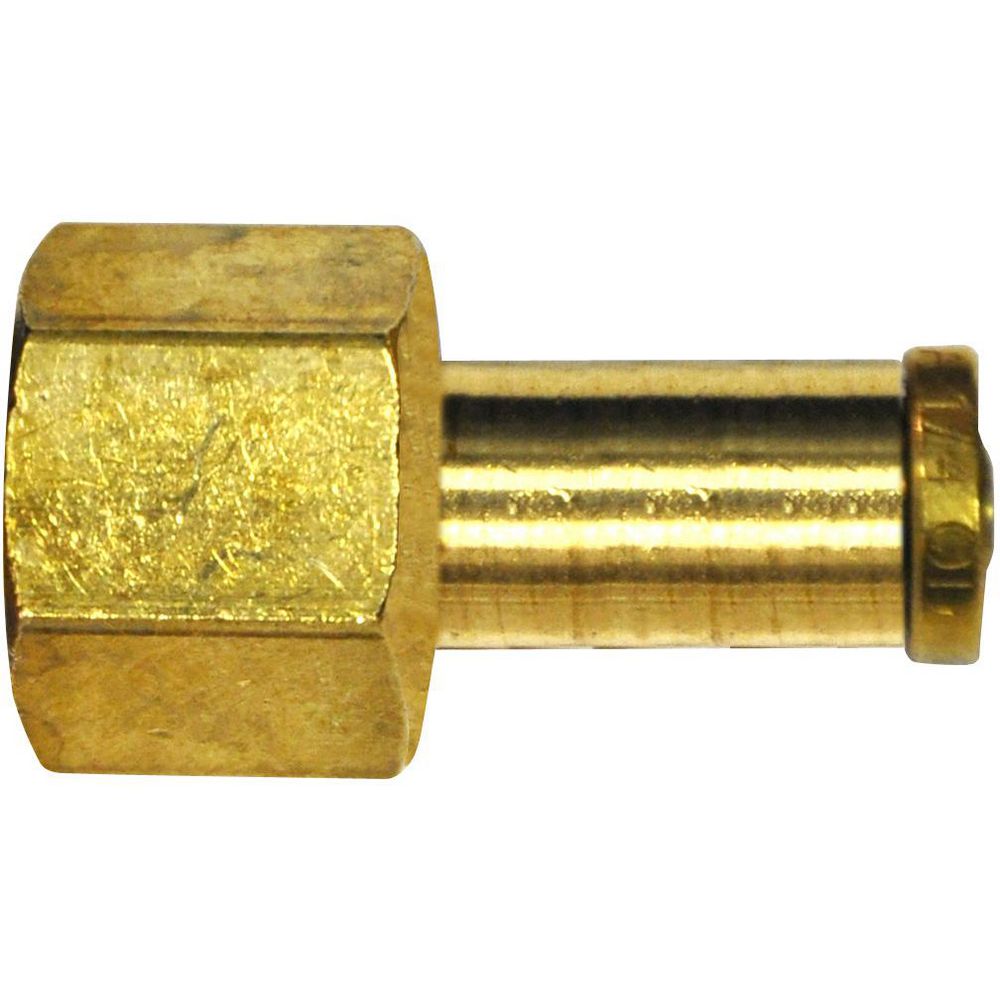

Brass, Female Straight Connector, Air Brake Push-to-Connect, 3/8 in. x 1/4 in.

Hover over image to magnify
A/B Push Fm Conn 3/8X1/4 Parke
A/B Push Fm Conn 3/8X1/4 Parke
Brass, Female Straight Connector, Air Brake Push-to-Connect, 3/8 in. x 1/4 in. Video
Double tap image to magnify
A/B Push Fm Conn 3/8X1/4 Parke
A/B Push Fm Conn 3/8X1/4 Parke
_zUepoKjkF4

#791460Pkg Qty: 5

In Stock

Shipping to 43085
|

Technical Specifications

Brand
PARKER
Material
Brass
Brass DOT Push-to-Connect Fittings Type
Connectors
Meets Standards
D.O.T. FMVSS 571.106 and SAE J1131
Connection Type
Female
Mfr. Part Number
66PTC-6-4
DOT Approved
Yes
Package Quantity
5
Fitting Connection (A) Style
Push to Connect
Pipe Thread
1/4 in.
Fitting Connection (A) Tube Size
3/8 in.
Plating
None
Fitting Connection (B) Gender
Female
Pressure Connection Cross
D1166-06-04
Fitting Connection (B) Pipe Size
1/4 in.
Shape
Connector
Fitting Connection (B) Style
NPTF Pipe
Shipping Weight
0.62 lb.
Fitting Connection (B) Thread Size
1/4-18
System of Measurement
Fractional
Fitting Material
Brass
Thread Size
3/8 in.
Fitting Style
Female connector
Tube Outside Diameter
3/8 in.
Fitting Type
Push-To-Connect
Vibration Resistance
Good
Gasket Material
Ethylene Propylene
Weatherhead Cross
1866x6
Grade
CA360
Working Pressure
150 psi
Hex Size
3/4 in.

Product Description

  • Typical Applications:
  • Air brakes, instrumentation, air controls, air bags, and air seats.
  • Exceeds DOT pressure requirements for air brake systems.
  • For use with SAE J844 type A or B air brake tubing.
  • Composite body lighter than standard brass fittings.
  • It is recommended to applied thread sealant to all pipe threads.
  • Pipe threads are the most common fitting style used in the United States and Canada.
